Tiles for outdoor drainage
Open modular tiles allow water to pass through the playing layer to a correctly graded hard base, making them strong for permanent outdoor public and school courts.
Premier sports flooring
A complete sports-surface range from free-draining modular tiles to continuous roll-out courts.
Apollo NZ Global supplies standard PP, cushioned PP, soft-connection and elite TPE modular tiles, plus PM-T, PM-S, professional indoor roll and custom-printed PVC flooring. The right system starts with the users, sport mix, base, drainage, comfort target, installation format and maintenance plan.
Four modular tile familiesFour roll-out / continuous pathwaysSchools, councils, clubs + commercial venues
Technical overview
Eight surface pathways
The range deliberately spans different playing feels, drainage strategies and installation models. Published values describe current representative configurations and must be confirmed against the exact model supplied.
01Standard PP interlocking

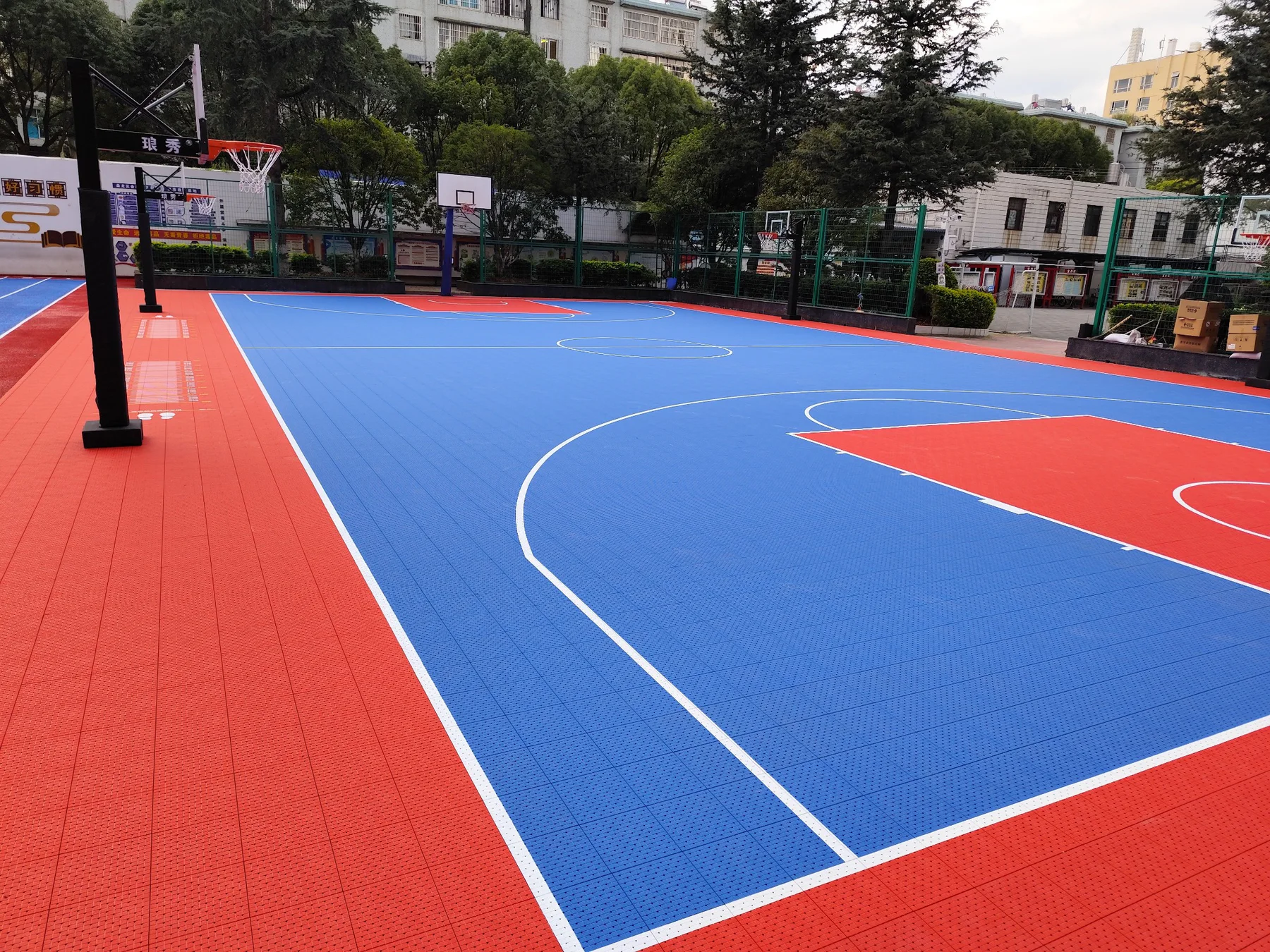

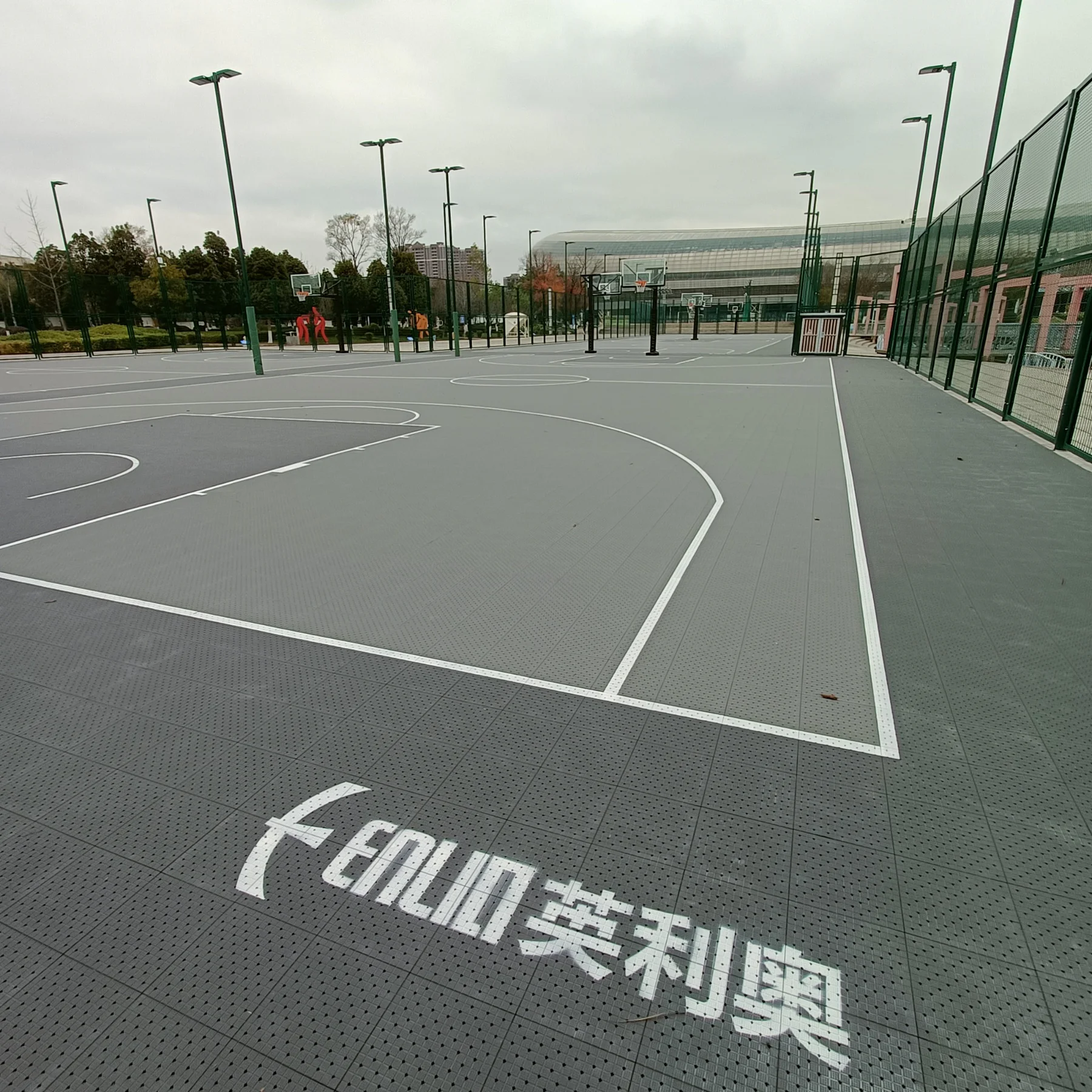

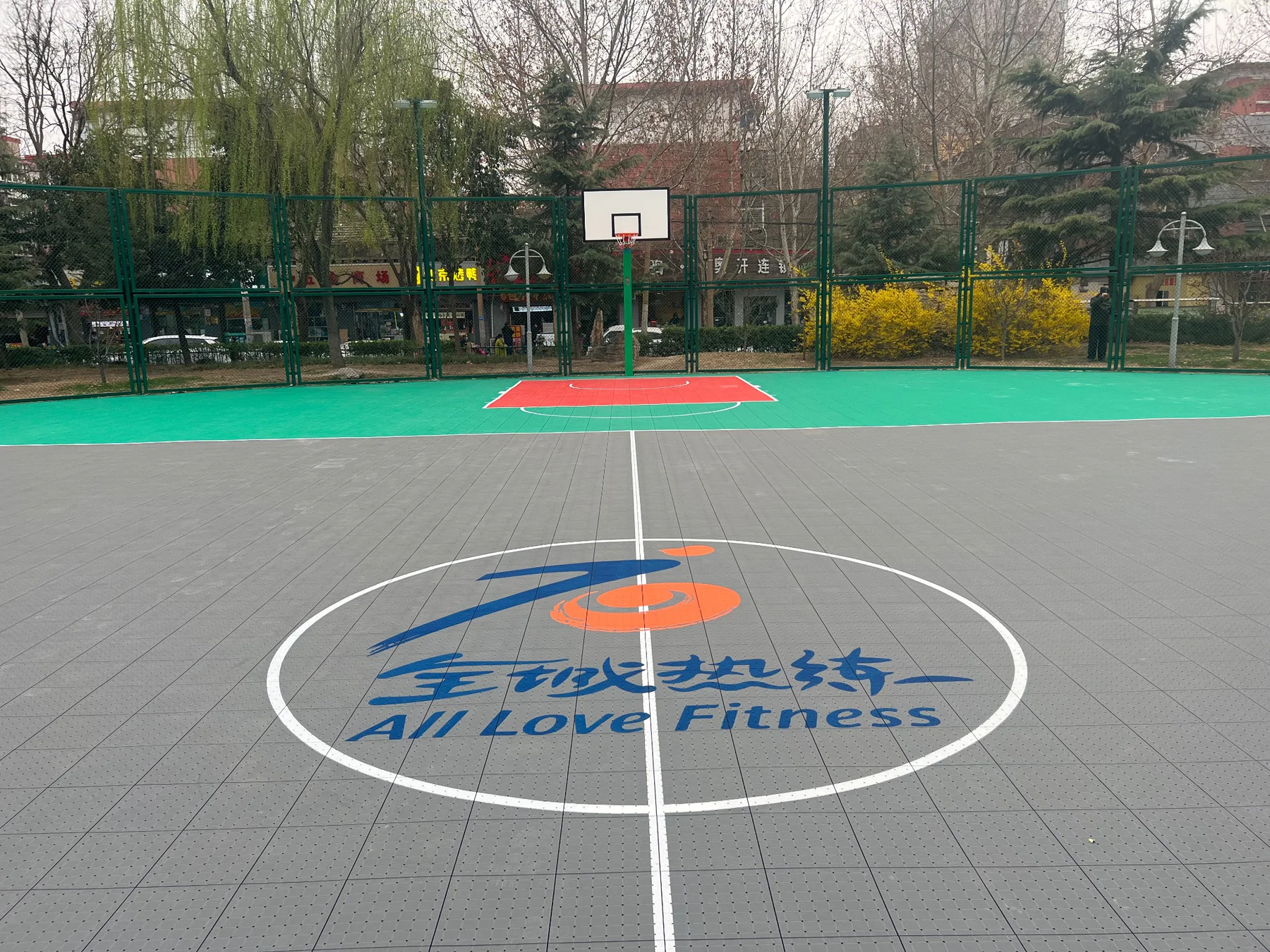

Approx. 305 × 305 × 14–16 mmDurable open textured modular tile for outdoor schools, councils, community courts and multi-sport.

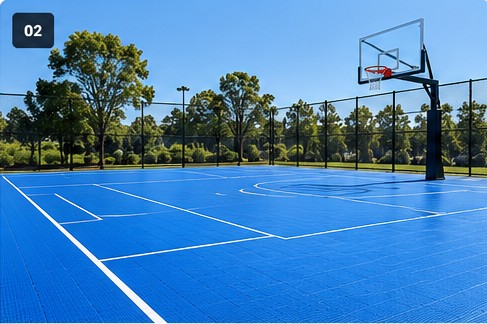

02Cushioned PP performance
Approx. 25%+ shock absorptionRepresentative performance models add elastic pads or suspended support while retaining modular drainage.
03Soft-connection performance
Approx. 400 × 400 × 15.8 mmRepresentative model: rebound around 90% and shock absorption 25%+; exact model data to confirm.

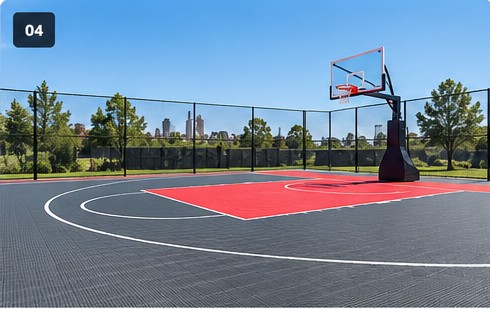

04Elite 3×3 TPE
Approx. 250 × 250 × 20 mmRepresentative elite system: rebound 98%+ and shock absorption 40%+ for basketball / 3×3-led projects.
05PM-T 3.0 Acrylic Sand
3.0 mm · 1.8 × 18 mApprox. 5.4 kg/m², #3 middle speed, published rebound 95%+, indoor/outdoor pathway.
06PM-S 3.5 PickleSand
3.5 mmMore cushioned pickleball-focused PVC system; published rebound varies from 93%+ to 97%+ by configuration.
07Professional indoor roll

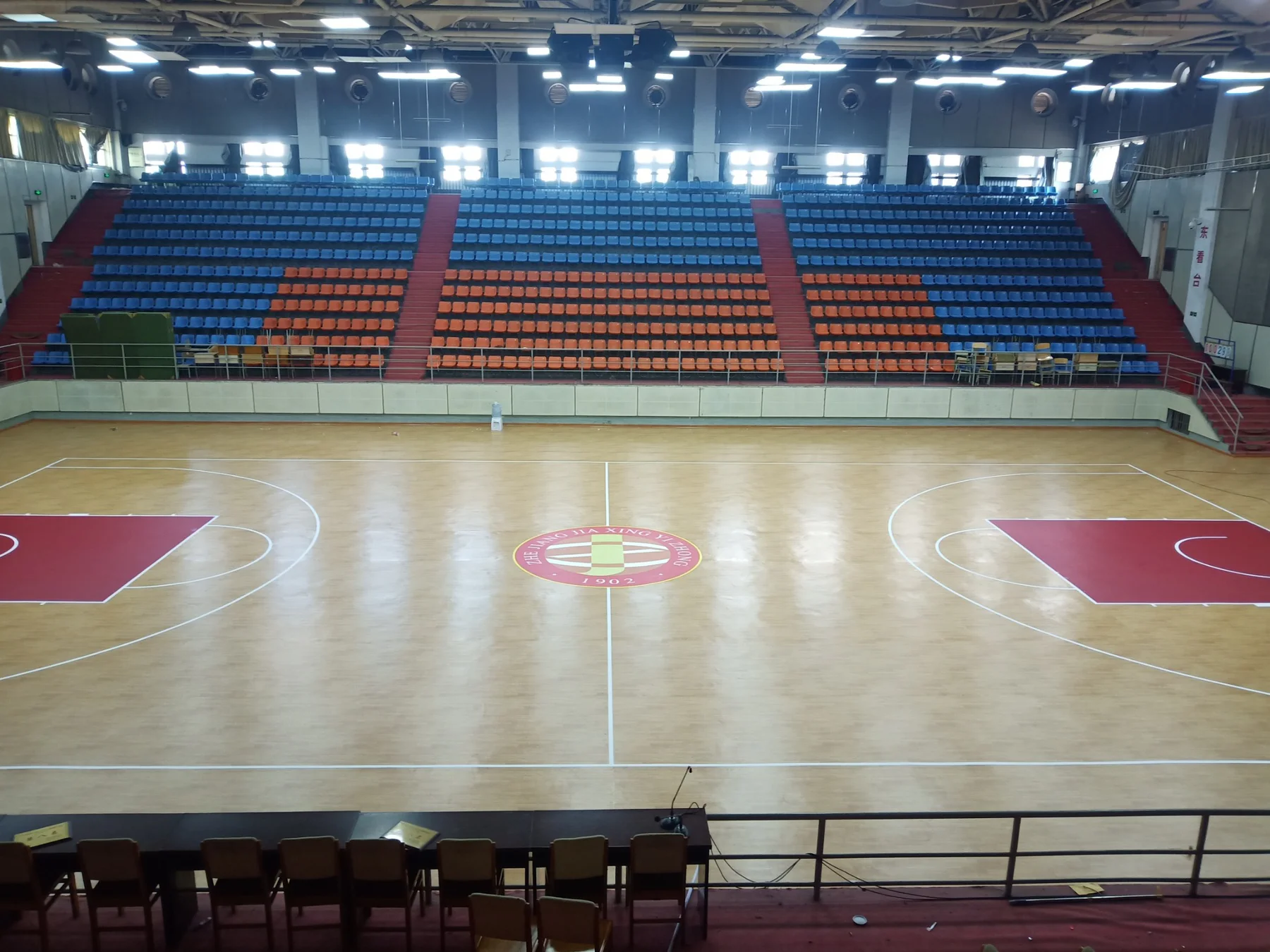

Approx. 2.5 mmApprox. 1.83 m roll width with glass-fibre reinforcement and representative rebound above 97%.
08Custom printed PVC
Project-specificIndoor commercial / branded flooring with protective top finish over custom graphics.
Final installation suitability is subject to the existing base and exact product configuration. Open modular tiles are through-draining; roll-out surfaces are not. Apollo NZ does not recommend direct installation of these sports surfaces over natural grass or an unsuitable soft/cushioned substrate.
Project fit
Choose the system around the site — not just the sport.

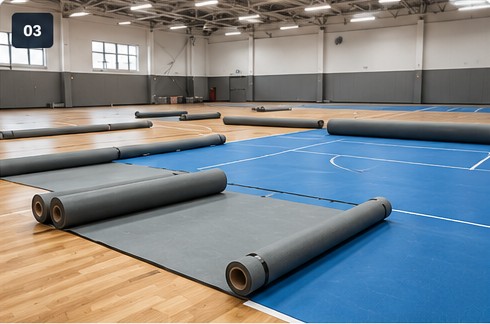

Rolls for continuous feel
Roll-out surfaces provide a continuous textured playing face and can suit portable, semi-permanent and fixed installations where the substrate is smooth, dry and well prepared.
Comfort is selectable
Cushioned PP, soft-connection, TPE and PM-S provide progressively different impact-management pathways. They should be specified around users and sport rather than medical claims.
Base-first design
Tiles cannot rescue a failed slab and roll flooring follows the substrate closely. Cracking, settlement, ponding, contamination and poor levels should be addressed first.
Lifecycle planning
Spare tiles, repair materials, roll maps, storage cores, seam methods, cleaning instructions and maintenance ownership should be planned before handover.

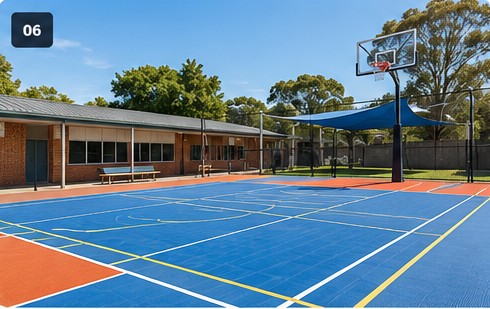

Public + commercial use
Schools, councils, clubs and commercial venues can select different surface pathways around drainage, presentation, portability, player feel and whole-of-life operation.
Common applications
PickleballBasketballBadmintonSchoolsClubsCouncilsRetirement villagesHome courtsMulti-sport
Need the right configuration?
