ATHREN — Sports & Flooring Systems

ATHREN Court / AX

Acrylic Cushion Court Systems

Site-applied acrylic court systems for tennis, pickleball and multi-sport projects, with 3 mm, 4 mm and 5 mm elastic-cushion pathways plus a 4 mm rubber-sheet cushion construction.

By Apollo NZ Global · Global project supply · Supply only

ATHREN AX acrylic cushion court systems overview

Direct project answers

What project teams need to know about Acrylic Cushion Court Systems.

A concise selection, evidence and project-input layer for the current ATHREN pathway.
01

What is ATHREN Acrylic Cushion Court Systems?

Site-applied acrylic court systems for tennis, pickleball and multi-sport projects, with 3 mm, 4 mm and 5 mm elastic-cushion pathways plus a 4 mm…

02

What projects are suitable for acrylic cushion court systems?

Typical project pathways include Tennis courts, Pickleball courts, Schools and clubs, and Competition courts. Final suitability depends on the exact configuration, site conditions, operating requirements and destination.

03

What information is needed to specify acrylic cushion court systems?

Before specification or quotation, the project review should confirm: Verified product specifications or documented product facts; Clear applications, limitations and configuration boundaries; Project inputs required for manual quotation or technical review; Apollo supply-only scope and purchaser/local-project responsibilities. Claims are kept tied to the exact proposed system rather than transferred from a related product or reference configuration.

04

Can Apollo NZ Global supply acrylic cushion court systems internationally?

Apollo can supply suitable projects internationally where the product and destination pathway are current. Send the project location, intended use, dimensions or quantities, timing, relevant drawings or photographs, and any known performance, compliance or environmental requirements for review.

Compare before you specify

Which court surface fits your project?

Different sports, substrates and operating patterns call for different floor constructions. These are application pathways, not a ranking or a substitute for tested specifications.

ATHREN surface-family comparison — confirm suitability of the exact quoted system
Surface familyProject starting pointCheck before selectionExplore
Indoor sports vinylMulti-purpose halls, basketball, volleyball and school venuesFloor moisture, shock absorption, ball response and markingsView options →
Outdoor modular PP / TPESchools, clubs and multi-sport courts over suitable hard basesDrainage, expansion, edges, substrate and sport-specific performanceView options →
Portable court rollsEvent floors and temporary hall conversionsRepeated pack-down permission, seams, protection and storageView options →
Competition 3×3 systemsBasketball competitions and project-specific event flooringCurrent exact-model approvals, court geometry and site conditionsView options →
Acrylic court systemsPermanent tennis, pickleball and outdoor hard courtsExisting base, drainage, coatings, curing and surface repairView options →
Engineered wood / hardwoodIndoor arenas, training venues and professional hallsTimber construction, humidity, resilience and certification scopeView options →

Free professional reference

Check the whole sports facility, not only the floor.

Use Apollo's publicly downloadable sports-facility planning matrix to coordinate court geometry, substrate, playing surface, equipment, lighting, spectator needs and product-evidence responsibility. This is a decision aid, not a performance certificate for this ATHREN model.

ATHREN COURT / PRODUCT SELECTION

Understand the surface and its application.

Compare construction and installation pathways for your court project. These product-family diagrams help with early planning; they are not certified installation sections.

SELECTED PRODUCT / AX / RM4

Cushioned acrylic systems

Supply format
Permanent, site-applied layered systems
Documented reference
AX3 / AX4 / AX5 nominal 3 / 4 / 5 mm; RM4 uses a 4 mm prefabricated rubber-sheet core
Construction reference
Rubber-granule coat counts vary by AX model; RM4 is a separate rubber-sheet construction
What the available supplier record supports

Supplier system composition and nominal family thickness recorded in the current technical quotation

02 / PRODUCT FAMILY COMPARISON

Choose by installation and use—not just thickness.

Physical samples, sports suitability and current model-specific technical evidence override a generic family comparison.
ATHREN pickleball flooring selection matrix
SurfaceFormatTypical project fitProduct
MCHard acrylicSite-applied · permanentPrepared outdoor hard courtsDetails
AX / RM4Cushioned acrylicSite-applied · permanentDedicated courts wanting a resilient build-upDetails
AC30Acrylic-coated rollPVC roll · planned seamsProject-specific fixed or removable courtsDetails
PVTextured PVCFactory-made resilient rollsIndoor and selected outdoor projectsDetails
PR30Portable rollsMulti-roll removable packageEvents and suitable hall conversionsDetails
CTPP modular tilesInterlocking open-grid modulesOutdoor and shared-use hard-base courtsDetails
RTResilient TPE tilesModel-specific interlocking TPEClubs, schools and softer-touch court formatsDetails
RC14Racquet PP tilesFirm high-impact PP modulesDedicated and shared racquet courtsDetails
No blanket competition certifications or warranty claims are transferred between surface models. Check your court dimensions

REQUEST PRODUCT EVIDENCE + QUOTATION

Use the measured site, selected surface and intended programme.

Include the base, exposure, roll or tile handling, installation frequency, destination and any project performance criteria. We can request samples, updated TDS and exact-model packing information during the quotation process.
Request ATHREN technical review

Pickleball surface buying guide

Quote this surface or compare your court options.

Share the number of courts, marked playing area versus total surface footprint, existing base, indoor/outdoor exposure, delivery country and expected timing. Apollo can review the selected ATHREN surface alongside LUTHVAR nets, dividers, fencing and lighting as one supply-only package. Exact performance, suitability and sample availability follow the selected manufacturer's documentation.

ATHREN Court

Choose the surface around the way it will be used.

ATHREN AX is the site-applied acrylic pathway within ATHREN COURT. It is distinct from ATHREN AC30 roll flooring: the AX systems are built up in place over a prepared asphalt substrate using sand-filled acrylic layers, resilient rubber-granule cushion coats and textured finish coats. A separate RM4 pathway uses a prefabricated 4 mm rubber sheet below the acrylic finish system. Base condition, drainage, crack treatment, movement joints and local installation quality remain critical to performance.

Tennis courtsPickleball courtsSchools and clubsCompetition courtsOutdoor multi-sport courtsCourt resurfacing

System visuals

See the construction and surface family.

These ATHREN reference visuals show the surface and construction families. Final colour, finish, substrate build-up and project specification follow the selected system and approved physical samples.

ATHREN AX acrylic cushion court systems overview
ATHREN COURT · Reference visual

ATHREN AX3 · AX4 · AX5 elastic cushion systems

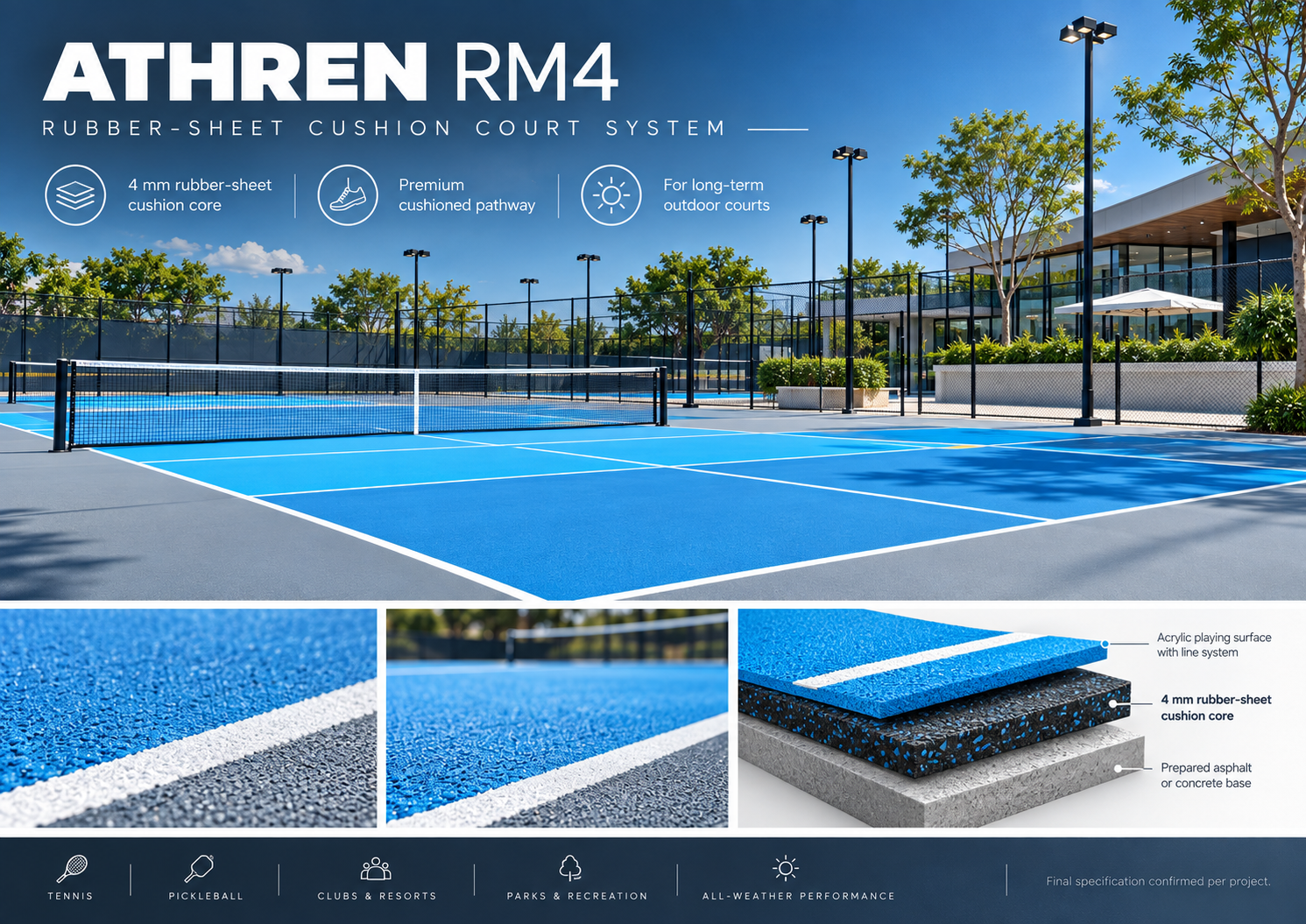

ATHREN RM4 rubber sheet cushion court system overview
ATHREN COURT · Reference visual

ATHREN RM4 · premium rubber-sheet cushion pathway

ATHREN applied court system layer comparison for MC AX and RM4
ATHREN COURT · Reference visual

Applied court construction comparison · MC vs AX vs RM4

ATHREN COURT applied system reference colour palette
ATHREN COURT · Reference visual

16-colour applied-court reference palette

Product overview

AX / Construction and use

Explore the product family and provide your intended sport, project dimensions and substrate details in the enquiry.

Current specification status
Public reference range · final TDS, concrete build-up, system tolerance and competition-document mapping confirmed before quotation
Primary substrate
Prepared asphalt reference build-up · concrete pathway subject to final technical confirmation
ATHREN AX3
Nominal 3 mm elastic acrylic cushion system
AX3 cushion build-up
2 fine rubber-granule cushion coats · silica-sand filler coats · 2 texture coats · 2 finish coats · line paint
ATHREN AX4
Nominal 4 mm elastic acrylic cushion system
AX4 cushion build-up
1 coarse rubber-granule coat · 2 fine rubber-granule coats · silica-sand filler coats · 2 texture coats · 2 finish coats · line paint
ATHREN AX5
Nominal 5 mm elastic acrylic cushion system
AX5 cushion build-up
2 coarse rubber-granule coats · 2 fine rubber-granule coats · silica-sand filler coats · 2 texture coats · 2 finish coats · line paint
ATHREN RM4
4 mm prefabricated rubber-sheet cushion core with site-applied acrylic finish system
RM4 reference build-up
Water-based epoxy primer · flexible resurfacer · 4 mm rubber sheet · adhesive · textured acrylic finish coats · line paint
Surface repairs
Low-area levelling, crack repair and movement-joint treatment are separate base-preparation scopes
Colour family
16 reference colours across blues, greens, yellow, orange, reds, lavender and grey
Reference colour names
Light Blue · Turkish Blue · Pacific Blue · Pure Blue · Dark Blue · Velocity Blue · Grass Green · Dark Green · Spring Green · Yellow · Orange · Sunrise · Red · Blossom Red · Lavender · Grey
Competition evidence
Current accreditation and court-pace evidence must be confirmed against the exact quoted system and certificate

Flooring selection must match the intended sport, substrate, exposure and installation. Apollo supplies products only; local project professionals arrange installation and approvals.

Select your variant

Options within this family.

Acrylic Cushion Court Systems variant comparison
VariantApplication / finish
ATHREN AX3Club, school, recreation and selected competition court projects
ATHREN AX4Higher-cushion tennis, pickleball and multi-sport courts
ATHREN AX5Maximum-cushion pathway within the current site-applied family
ATHREN RM4Projects preferring a prefabricated resilient cushion layer below the acrylic playing surface

Before you specify

Three things to resolve.

  1. 01

    Confirm the finished asphalt condition, flatness, drainage falls, ponding, cracking and movement joints before a coating system is selected.

  2. 02

    Treat low areas, cracks and movement joints as separate preparation work; the playing-surface system should not be used to conceal a failed base.

  3. 03

    Confirm the intended sport, line plan, colour schedule and required court-pace or competition evidence before ordering materials.

  4. 04

    Apollo supplies the system; substrate repair, mixing, application, curing, line marking and local quality control are by the destination installer unless separately agreed.

  5. 05

    For concrete projects, hold the final coating schedule until the approved primer, moisture, preparation and build-up requirements have been confirmed.

From sample to supply

Bring the site, the activity and the surface together.

01 / Brief

Send the surface area, destination, intended use, timing and a plan or photographs of the existing base or site.

02 / Select

Review the appropriate construction, physical sample, colour, texture and layout.

03 / Detail

Agree seams, fixing or adhesive where applicable, edge transitions, local installation and any required performance documentation.

04 / Supply

Apollo completes the commercial review, confirms the supplied items, packing, freight and delivery arrangements, then prepares the project-specific proposal.

Project questions

Useful answers.

What specification should I use for acrylic cushion court systems?

Start with the variant table on this page. Confirm the finished asphalt condition, flatness, drainage falls, ponding, cracking and movement joints before a coating system is selected. Final dimensions, construction and installation details are confirmed during Apollo's project review.

Can I request a sample?

Yes. Ask Apollo for the current sample options for AX. Colour, texture and finish should be agreed against the selected physical sample before production.

Does the supply include installation?

No. Apollo NZ Global supplies the selected flooring products only. The purchaser independently appoints and manages local contractors for substrate preparation, installation, approvals and other site works. Available product documentation can be requested during the supply review.

Explore further

More from ATHREN Court.

Plan · specify · compare

Supporting pathways for ATHREN Acrylic Cushion Court Systems.

Use the parent category, technical guidance and project tools to confirm application, evidence and supply requirements without creating duplicate search pages.
Product snapshot

ATHREN Acrylic Cushion Court Systems

Site-applied acrylic court systems for tennis, pickleball and multi-sport projects, with 3 mm, 4 mm and 5 mm elastic-cushion pathways plus a 4 mm rubber-sheet cushion construction. Current specification status: Public reference range · final TDS, concrete build-up, system tolerance and competition-document mapping confirmed before quotation; Primary substrate: Prepared asphalt reference build-up · concrete pathway subject to final technical confirmation; ATHREN AX3: Nominal 3 mm elastic acrylic cushion system; AX3 cushion build-up: 2 fine rubber-granule cushion coats · silica-sand filler coats · 2 texture coats · 2 finish coats · line paint; ATHREN AX4: Nominal 4 mm elastic acrylic cushion system; AX4 cushion…

ATHRENSports Surfaces & FlooringExplore product options
Configuration

Project Reviewed

Materials

Rubber · Concrete Uhpc

Related4 related product optionsHow we supplyProduct supply only · quotation tailored to your project

Final configuration, engineering, certification and destination requirements are reviewed for each project.
