ATHREN — Sports & Flooring Systems

ATHREN Court / RT

Resilient TPE Modular Court Tiles

Soft-touch TPE interlocking court tiles across performance, multi-sport, residential and youth-use pathways.

By Apollo NZ Global · Global project supply · Supply only

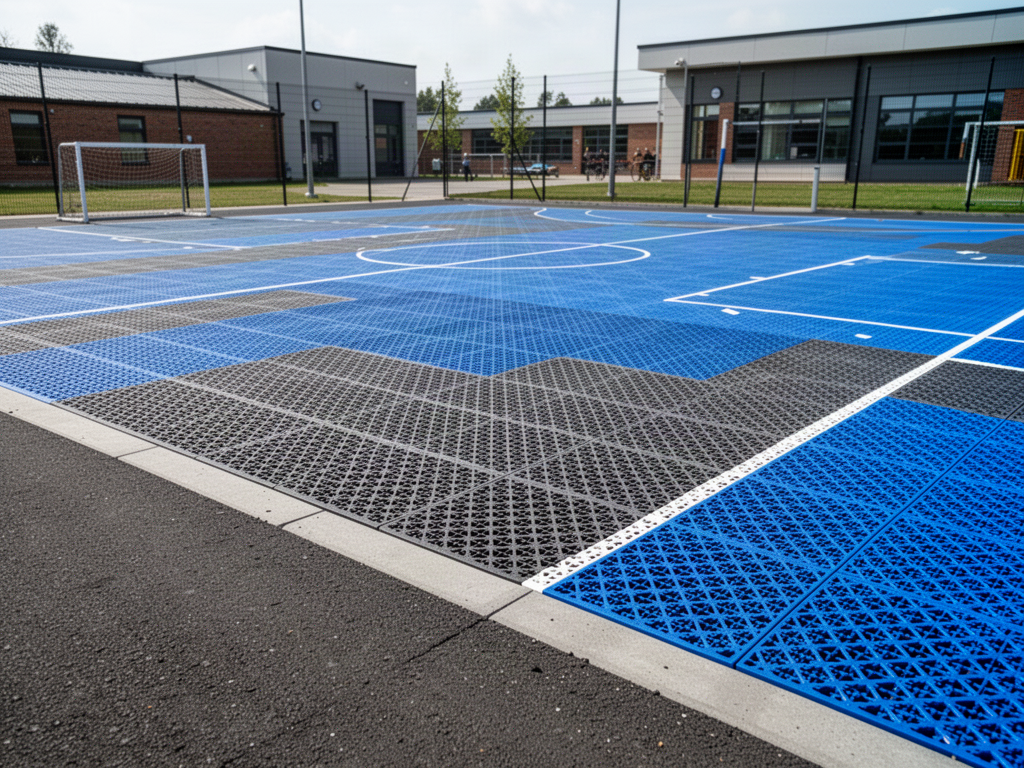

Resilient TPE Modular Court Tiles application design

Direct project answers

What project teams need to know about Resilient TPE Modular Court Tiles.

A concise selection, evidence and project-input layer for the current ATHREN pathway.
01

What is ATHREN Resilient TPE Modular Court Tiles?

Soft-touch TPE interlocking court tiles across performance, multi-sport, residential and youth-use pathways.

02

What projects are suitable for resilient tpe modular court tiles?

Typical project pathways include Basketball, Pickleball, Volleyball, and Badminton. Final suitability depends on the exact configuration, site conditions, operating requirements and destination.

03

What information is needed to specify resilient tpe modular court tiles?

Before specification or quotation, the project review should confirm: Verified product specifications or documented product facts; Clear applications, limitations and configuration boundaries; Project inputs required for manual quotation or technical review; Apollo supply-only scope and purchaser/local-project responsibilities. Claims are kept tied to the exact proposed system rather than transferred from a related product or reference configuration.

04

Can Apollo NZ Global supply resilient tpe modular court tiles internationally?

Apollo can supply suitable projects internationally where the product and destination pathway are current. Send the project location, intended use, dimensions or quantities, timing, relevant drawings or photographs, and any known performance, compliance or environmental requirements for review.

Compare before you specify

Which court surface fits your project?

Different sports, substrates and operating patterns call for different floor constructions. These are application pathways, not a ranking or a substitute for tested specifications.

ATHREN surface-family comparison — confirm suitability of the exact quoted system
Surface familyProject starting pointCheck before selectionExplore
Indoor sports vinylMulti-purpose halls, basketball, volleyball and school venuesFloor moisture, shock absorption, ball response and markingsView options →
Outdoor modular PP / TPESchools, clubs and multi-sport courts over suitable hard basesDrainage, expansion, edges, substrate and sport-specific performanceView options →
Portable court rollsEvent floors and temporary hall conversionsRepeated pack-down permission, seams, protection and storageView options →
Competition 3×3 systemsBasketball competitions and project-specific event flooringCurrent exact-model approvals, court geometry and site conditionsView options →
Acrylic court systemsPermanent tennis, pickleball and outdoor hard courtsExisting base, drainage, coatings, curing and surface repairView options →
Engineered wood / hardwoodIndoor arenas, training venues and professional hallsTimber construction, humidity, resilience and certification scopeView options →

Free professional reference

Check the whole sports facility, not only the floor.

Use Apollo's publicly downloadable sports-facility planning matrix to coordinate court geometry, substrate, playing surface, equipment, lighting, spectator needs and product-evidence responsibility. This is a decision aid, not a performance certificate for this ATHREN model.

ATHREN COURT / PRODUCT SELECTION

Understand the surface and its application.

Compare construction and installation pathways for your court project. These product-family diagrams help with early planning; they are not certified installation sections.

SELECTED PRODUCT / RT

Resilient TPE court tiles

Supply format
Interlocking resilient modular surfaces
Documented reference
Selected 250 / 305 / 400 mm families; nominal 13–16 mm thickness depends on the variant
Construction reference
Resilient TPE tile family; performance is model-specific, not a universal ATHREN RT rating
What the available supplier record supports

Model-by-model dimensions and reference laboratory values recorded in the supplier's current catalogue

02 / PRODUCT FAMILY COMPARISON

Choose by installation and use—not just thickness.

Physical samples, sports suitability and current model-specific technical evidence override a generic family comparison.
ATHREN pickleball flooring selection matrix
SurfaceFormatTypical project fitProduct
MCHard acrylicSite-applied · permanentPrepared outdoor hard courtsDetails
AX / RM4Cushioned acrylicSite-applied · permanentDedicated courts wanting a resilient build-upDetails
AC30Acrylic-coated rollPVC roll · planned seamsProject-specific fixed or removable courtsDetails
PVTextured PVCFactory-made resilient rollsIndoor and selected outdoor projectsDetails
PR30Portable rollsMulti-roll removable packageEvents and suitable hall conversionsDetails
CTPP modular tilesInterlocking open-grid modulesOutdoor and shared-use hard-base courtsDetails
RTResilient TPE tilesModel-specific interlocking TPEClubs, schools and softer-touch court formatsDetails
RC14Racquet PP tilesFirm high-impact PP modulesDedicated and shared racquet courtsDetails
No blanket competition certifications or warranty claims are transferred between surface models. Check your court dimensions

REQUEST PRODUCT EVIDENCE + QUOTATION

Use the measured site, selected surface and intended programme.

Include the base, exposure, roll or tile handling, installation frequency, destination and any project performance criteria. We can request samples, updated TDS and exact-model packing information during the quotation process.
Request ATHREN technical review

Pickleball surface buying guide

Quote this surface or compare your court options.

Share the number of courts, marked playing area versus total surface footprint, existing base, indoor/outdoor exposure, delivery country and expected timing. Apollo can review the selected ATHREN surface alongside LUTHVAR nets, dividers, fencing and lighting as one supply-only package. Exact performance, suitability and sample availability follow the selected manufacturer's documentation.

ATHREN Court

Choose the surface around the way it will be used.

ATHREN RT expands the modular court family beyond polypropylene. These resilient thermoplastic-elastomer pathways are selected where softer touch, added cushioning, drainage and modular replacement are useful. The family spans a higher-performance 250 mm tile, two 305 mm multi-sport options, a larger residential tile and a youth/playground pathway. Competition certification is only stated where the exact system is independently verified.

BasketballPickleballVolleyballBadmintonFutsalSchoolsResidential courtsYouth recreation

Product overview

RT / Construction and use

Explore the product family and provide your intended sport, project dimensions and substrate details in the enquiry.

Material family
Thermoplastic elastomer (TPE)
RT16 Performance
250 × 250 × 16 mm · 440 g/unit · 7.04 kg/m² · force reduction 33% · vertical deformation 1.1 mm · ball rebound 100% · slip resistance 90 BPN dry
RT13 Multi
305 × 305 × 13 mm · 575 g/unit · 6.181 kg/m² · force reduction 25% · vertical deformation 0.7 mm · ball rebound 100% · slip resistance 100 BPN dry · ≥10,000 mm/h permeability
RT14 Flex
305 × 305 × 14 mm · 486 g/unit · force reduction 23% · vertical deformation 0.6 mm · ball rebound 100% · slip resistance 100 BPN
RT13 Home
400 × 400 × 13 mm · 890 g/unit · 5.562 kg/m² · force reduction 25% · vertical deformation 0.8 mm · ball rebound 96% · slip resistance 95 BPN dry · ≥15,000 mm/h permeability
RT13 Play
400 × 400 × 13 mm · 1000 g/unit · 6.25 kg/m² · force reduction 26% · vertical deformation 0.9 mm · ball rebound 94% · slip resistance 100 BPN dry
Customisation
Selected systems support custom colours, logos and court graphics
Warranty reference
Reference documentation supports a 5-year warranty on RT13 Multi, RT14 Flex, RT13 Home and RT13 Play; exact project warranty is confirmed before quotation

Flooring selection must match the intended sport, substrate, exposure and installation. Apollo supplies products only; local project professionals arrange installation and approvals.

Select your variant

Options within this family.

Resilient TPE Modular Court Tiles variant comparison
VariantApplication / finish
ATHREN RT16 PerformanceBasketball, pickleball, volleyball, badminton, handball and multi-sport courts
ATHREN RT13 MultiSchools, commercial courts, pickleball, basketball and general multi-sport
ATHREN RT14 FlexCommercial-level basketball, pickleball, volleyball, futsal, badminton and multi-sport
ATHREN RT13 HomeResidential and backyard basketball, pickleball and family multi-sport courts
ATHREN RT13 PlayPreschool, kindergarten, youth recreation and cushioned play/sport areas

Before you specify

Three things to resolve.

  1. 01

    Select the pathway around sport, user group, base flatness, drainage and expected loading rather than thickness alone.

  2. 02

    Review a physical sample for traction, ball response, softness and colour before a large court order is frozen.

  3. 03

    Allow for thermal movement, perimeter transitions and drainage below the modular surface.

From sample to supply

Bring the site, the activity and the surface together.

01 / Brief

Send the surface area, destination, intended use, timing and a plan or photographs of the existing base or site.

02 / Select

Review the appropriate construction, physical sample, colour, texture and layout.

03 / Detail

Agree seams, fixing or adhesive where applicable, edge transitions, local installation and any required performance documentation.

04 / Supply

Apollo completes the commercial review, confirms the supplied items, packing, freight and delivery arrangements, then prepares the project-specific proposal.

Project questions

Useful answers.

What specification should I use for resilient tpe modular court tiles?

Start with the variant table on this page. Select the pathway around sport, user group, base flatness, drainage and expected loading rather than thickness alone. Final dimensions, construction and installation details are confirmed during Apollo's project review.

Can I request a sample?

Yes. Ask Apollo for the current sample options for RT. Colour, texture and finish should be agreed against the selected physical sample before production.

Does the supply include installation?

No. Apollo NZ Global supplies the selected flooring products only. The purchaser independently appoints and manages local contractors for substrate preparation, installation, approvals and other site works. Available product documentation can be requested during the supply review.

Explore further

More from ATHREN Court.

Plan · specify · compare

Supporting pathways for ATHREN Resilient TPE Modular Court Tiles.

Use the parent category, technical guidance and project tools to confirm application, evidence and supply requirements without creating duplicate search pages.
Product snapshot

ATHREN Resilient TPE Modular Court Tiles

Soft-touch TPE interlocking court tiles across performance, multi-sport, residential and youth-use pathways. Material family: Thermoplastic elastomer (TPE); RT16 Performance: 250 × 250 × 16 mm · 440 g/unit · 7.04 kg/m² · force reduction 33% · vertical deformation 1.1 mm · ball rebound 100% · slip resistance 90 BPN dry; RT13 Multi: 305 × 305 × 13 mm · 575 g/unit · 6.181 kg/m² · force reduction 25% · vertical deformation 0.7 mm · ball rebound 100% · slip resistance 100 BPN dry · ≥10,000 mm/h permeability; RT14 Flex: 305 × 305 × 14 mm · 486 g/unit · force reduction 23% · vertical deformation 0.6 mm · ball rebound 100% · slip resistance 100 BPN; RT13 Home: 400 × 400 × 13 mm · 890 g/unit · 5.562 kg/m² · force…

ATHRENSports Surfaces & FlooringExplore product options
Applications

Residential

Configuration

Customisable

Related4 related product optionsHow we supplyProduct supply only · quotation tailored to your project

Final configuration, engineering, certification and destination requirements are reviewed for each project.

Project planning

Useful product details at a glance.

Product information
OptionCustomisable

Choose from available options and finishes. We'll confirm what's possible for your model before quotation.

Build project brief

Final engineering, testing, approvals and destination requirements are confirmed for the actual project where applicable.

Connected project pathway

Everything you need to take the next project step.

ATHREN · Sports & Flooring Systems
Planning & specification

ATHREN Resilient TPE Modular Court Tiles: what to define before quotation.

Soft-touch TPE interlocking court tiles across performance, multi-sport, residential and youth-use pathways.

Applications
  • Basketball
  • Pickleball
  • Volleyball
  • Badminton
  • Futsal
Specification evidence
  • Verified product specifications or documented product facts
  • Clear applications, limitations and configuration boundaries
  • Project inputs required for manual quotation or technical review
  • Apollo supply-only scope and purchaser/local-project responsibilities
Compare before selecting
  • Dimensions, capacity or coverage required for the real site.
  • Materials, finishes and environmental exposure.
  • Installation, interfaces, services and maintenance access.
  • Technical documents, local approvals and project responsibilities.
Related pathwayProject Upload Tool
Product informationNeed a datasheet, drawing or technical guide?

Tell us the product or model, project location and what information you need. We'll confirm what can be provided for your chosen system and quotation.

Request product information
ATHRENSports & Flooring Systems · By Apollo NZ GlobalContact Apollo

Supply only. Local site works, installation and approvals are coordinated separately. Commercial proposals are prepared manually after Apollo reviews the project information.
