Planning & specificationBrowse product information for the ORDRAN range, including custom dimensions, acrylic windows, treatment, heating, controls and automatic covers. We can confirm the specifications and documents available for your chosen pool.

Technical information for made-to-measure architectural pool projects.

Explore pool construction, dimensions, viewing-window options, water systems, delivery, installation guidance and warranty information for ORDRAN architectural pools.

Four ORDRAN product data pagesBase + installation guideLifting + water-system guidanceQA + project-information resources

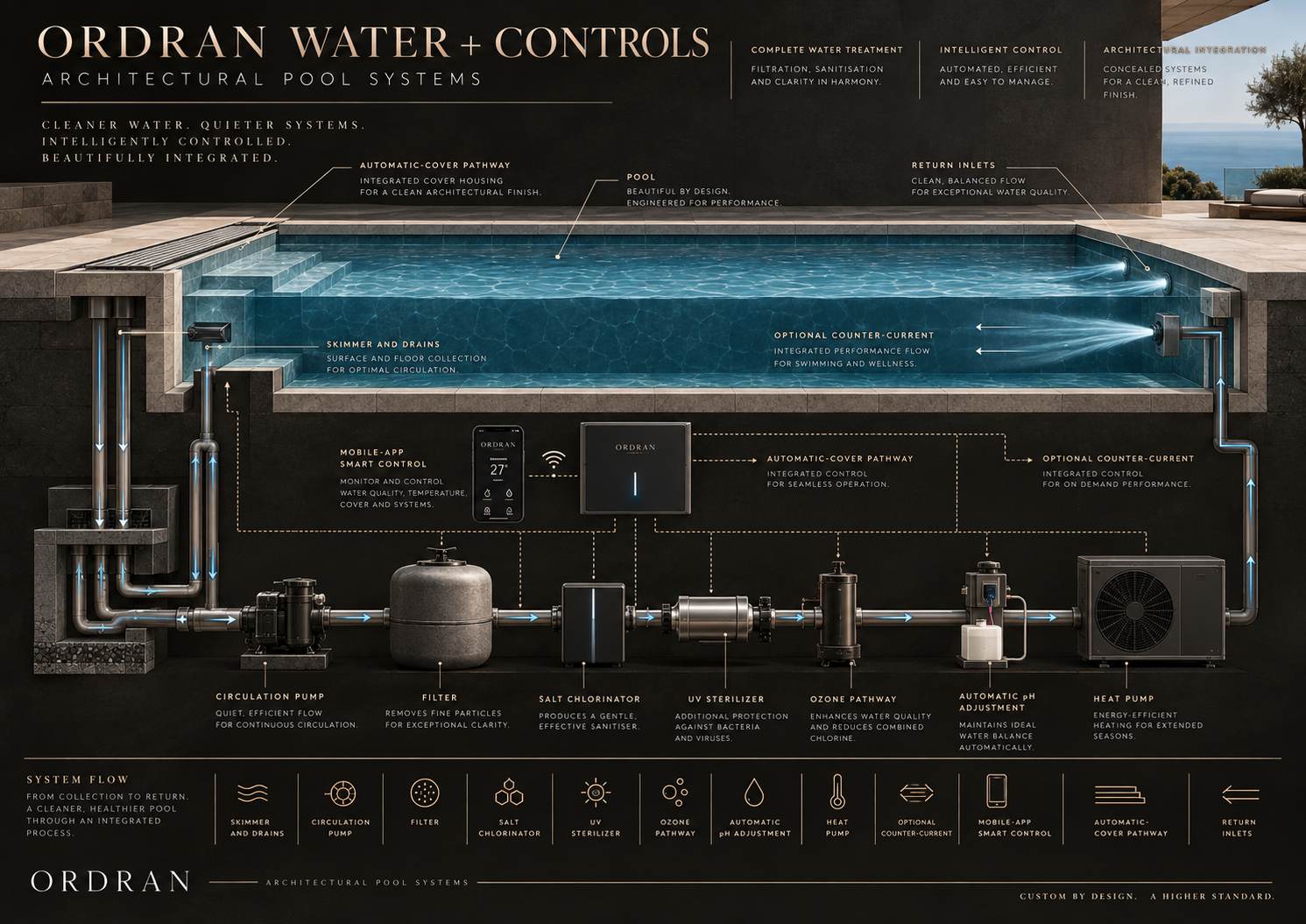

ORDRAN technical systems and water-control overview

Product details

Pool construction and technical details.

Explore the features and construction details below. Final dimensions, materials, equipment and delivery requirements depend on the model and options selected.

01Geometry
External envelope · internal water geometry · depth · freeboardApproved drawings control the actual pool rather than generic marketing dimensions.
02Structure
Support system · reinforcement · bearing pointsStructural construction and corrosion protection are tied to the actual pool size and production method.
03Architectural pool structure
FRP shell + galvanized rectangular-steel support frameDocumented for the 10.0 × 5.0 × 1.6 m semi-inground configuration. Main frame profile is stated as 50 × 30 × 3 mm rectangular tube. Current documented shipping weight is 2,700 kg.
04Framed WPC structure
WPC cladding + galvanized-steel frame + seamless FRP linerDocumented for both 3.9 m and 11.8 m framed configurations. This construction must not be generalized to unrelated ORDRAN systems.
05FRP / composite
Laminate · resin · gelcoat · barrier layersMaterial build-up, thickness and quality evidence remain tied to the production documentation.
06Framed-pool laminate
8-layer schedule · approx. 8 mm nominal sumThe framed-pool schedule lists 1 mm pool-grade gel coat, CSM, two woven-roving layers, composite surface felt, hydrolysis-resistant vinyl-ester resin, further CSM and anti-aging vinyl-ester resin. Use only for the documented framed family.
07Gel coat
Pool-grade gelcoat · stated 1 mm layerApplies to the documented framed WPC pool family. Exact material and finish are confirmed for the selected model.
08Windows
PMMA grade · thickness · support · seals · testViewing-window projects require exact material and structural evidence for the supplied panel.
09Viewing-window options
Framed + frameless window systemsPublished planning references include a framed window up to 2.86 × 0.83 m and a 2.0 × 1.4 m frameless format at a stated 22 mm thickness. Final dimensions, water level, material grade and engineering are specific to the selected pool.
10Hydraulics
Suction · filtration · treatment · heating · returns · overflowPipework, valves, design flow and equipment are coordinated as one hydraulic schedule.
11Equipment
Pump · filter · heater/chiller · sanitation · controls · lightingEquipment brands, models and features are confirmed for the selected configuration and quotation.
12Treatment options
Salt · UV · ozone · automatic pHCurrent documented technical information supports these pathways. Exact equipment brand, model, flow, power and certifications remain project-specific.
13Smart control
Mobile-app pathway availableController platform, supported functions and integration are confirmed in the final equipment schedule.
14Counter-current
Swim-jet + propeller-type pathwaysSelected system output, flow / thrust, power and controls remain configuration-specific.
15Automatic cover
Intelligent villa-grade pathway availableExact cover type, motor, dimensional limits and safety evidence are confirmed for the chosen pool.
16Infinity
Overflow edge · collection · balance volume · controlsInfinity / overflow projects require a genuine hydraulic design, not simply a lowered pool edge.
17Lifting + freight
Dry weight · transport envelope · lift points · CoGDestination handling plans use the configured pool's release documentation.
18Production water testing
48–72 h hydrostatic test procedureFor the applicable documented pool family, the procedure calls for filling to the working water level and checking the shell, joints and viewing windows for leaks and deformation. Request the records relevant to the pool supplied.
19Water chemistry
pH 7.0–7.8 · free chlorine 0.3–1.0 mg/LThe documented operating guidance also specifies salt-chlorinator salinity up to 5,000 ppm and a maximum water temperature of 38 °C for the relevant system. Follow the supplied manual and avoid strong concentrated acids, abrasive cleaners, corrosive agents and copper-based algaecides.
20Corrosion protection
Pre-galvanized steel + zinc-rich weld treatmentFor the documented framed system, weld treatment and adequate drainage are important to reduce prolonged saline exposure and corrosion risk.
21Post-install fill test
24 h full-water leakage checkThe framed WPC installation sheet requires a 24-hour full-water check after foundation, positioning and pipeline connection, before commissioning.
22Framed-pool base
C25 concrete · ≥150 mm · ≤3 mm/m level toleranceThis is the documented requirement for the WPC framed pools, not a universal foundation specification for every ORDRAN project.
23Framed-pool lifting
Lift from steel frame onlyManufacturer instructions prohibit applying sling forces to WPC cladding, viewing glass or FRP liner.
24Warranty pathway
Written project warranty schedule requiredShell, frame, glazing, equipment, controls and cover warranty periods are published only from the final written documents applicable to the supplied configuration.

ORDRAN is supply-only and does not include physical site inspection. Technical review is based on project information provided by the client and their local consultants / contractors. The purchaser independently arranges and manages all engineering, foundations, installation, utilities, barriers, approvals and commissioning; Apollo does not provide onsite services.

ORDRAN Technical Library

Product guides and practical planning information.

Browse the ORDRAN range guide, individual product information and helpful resources for foundations, lifting, water systems, maintenance and preparing a project brief.
PDF range guide

ORDRAN Architectural Pool Systems

Explore the pool range, main options, technical diagrams and project-planning considerations.

Open resource →
PDF product guide

ORDRAN CUSTOM

Premium architectural guide covering the documented CUSTOM configuration, construction, equipment pathway and project controls.

Open resource →
PDF product guide

ORDRAN INFINITY

Premium infinity / overflow guide with controlled project hydraulic and architectural-edge information.

Open resource →
PDF product guide

ORDRAN PLUNGE

Premium compact framed-pool guide covering viewing-window, base and construction requirements.

Open resource →
PDF product guide

ORDRAN LINEAR

Premium long-format framed-pool guide covering the viewing window, base and construction system.

Open resource →
Installation

Base + Installation Guide

Concrete-base, level-tolerance, service-connection and post-install water-test requirements for framed pools.

Open resource →
Handling

Lifting + Handling Guide

Structural lifting path, protected elements and project lifting information required before delivery.

Open resource →
Water systems

Treatment + Controls

Salt, UV, ozone, automatic pH, heat-pump, smart-control, cover and counter-current pathways.

Open resource →
Quality

QA + Warranty

Production hydrostatic testing, post-install checks and current warranty pathways by system and component.

Open resource →
Project brief

Project Information Checklist

Dimensions, architecture, destination, access, water systems and timing information needed to configure an ORDRAN project.

Open resource →

Applications + project fit

Planning an ORDRAN pool.

Custom sizing

Length, width and depth can be configured by project. One-piece pools are generally planned up to 12 m long, with modular construction considered for larger projects. Exact limits are confirmed before quotation.

Structure & support

Local project teams should use the dimensions, support details, materials, weight and lifting information applicable to the selected pool.

Available drawings

The technical library includes reference information for semi-inground pools, infinity edges and framed-pool foundation and lifting requirements.

Water systems

Explore pump, filtration, heating, sanitation, overflow, hydrotherapy and control options for your preferred pool.

Acrylic viewing windows

Window size, material, thickness, supports and sealing must suit the exact pool dimensions and water depth.

Project documents

Ask for the final drawings, equipment information, delivery and lifting documents, relevant test records, manuals and warranty terms for the pool supplied.

Applications
Architects + specifiersPool project teamsResort developersHospitality consultantsLocal contractorsInternational distributorsORDRAN project review

Connected project pathway

Everything you need to take the next project step.

ORDRAN · Architectural Pool Systems
Related pathwayProject Upload Tool
Regional project pathwayORDRAN Architectural Pool Systems for Pacific Island projects

Review this system against the actual island, coastal exposure, wind or cyclone criteria, freight route and local project responsibilities before the final configuration is selected.

Product informationNeed a datasheet, drawing or technical guide?

Tell us the product or model, project location and what information you need. We'll confirm what can be provided for your chosen system and quotation.

Request product information

Related project systems

Build the wider project around the primary product.

Related products are suggestions for project coordination, not automatic inclusions.

APOLLO · PRODUCT REFERENCE

Helpful background for your project.

Made-to-measure pool geometry, structure, FRP construction, viewing windows, hydraulics, equipment, lifting, QA, installation and warranty planning.
PublisherApollo NZ Global
Edition2026.3
Reviewed4 October 2026

Important project note

WHO recreational-water guidance supplies public-health context only. ORDRAN structure, laminate, glazing, lifting, water treatment, electrical systems, foundations, barriers and project release information remain controlled by the exact supplied pool and destination.
