Soft-Mask Outdoor LED

Outdoor LED pathway using soft-mask modules for applications where a more compliant display face is preferred. Current documented configurations include P6.67 and P8.

View system

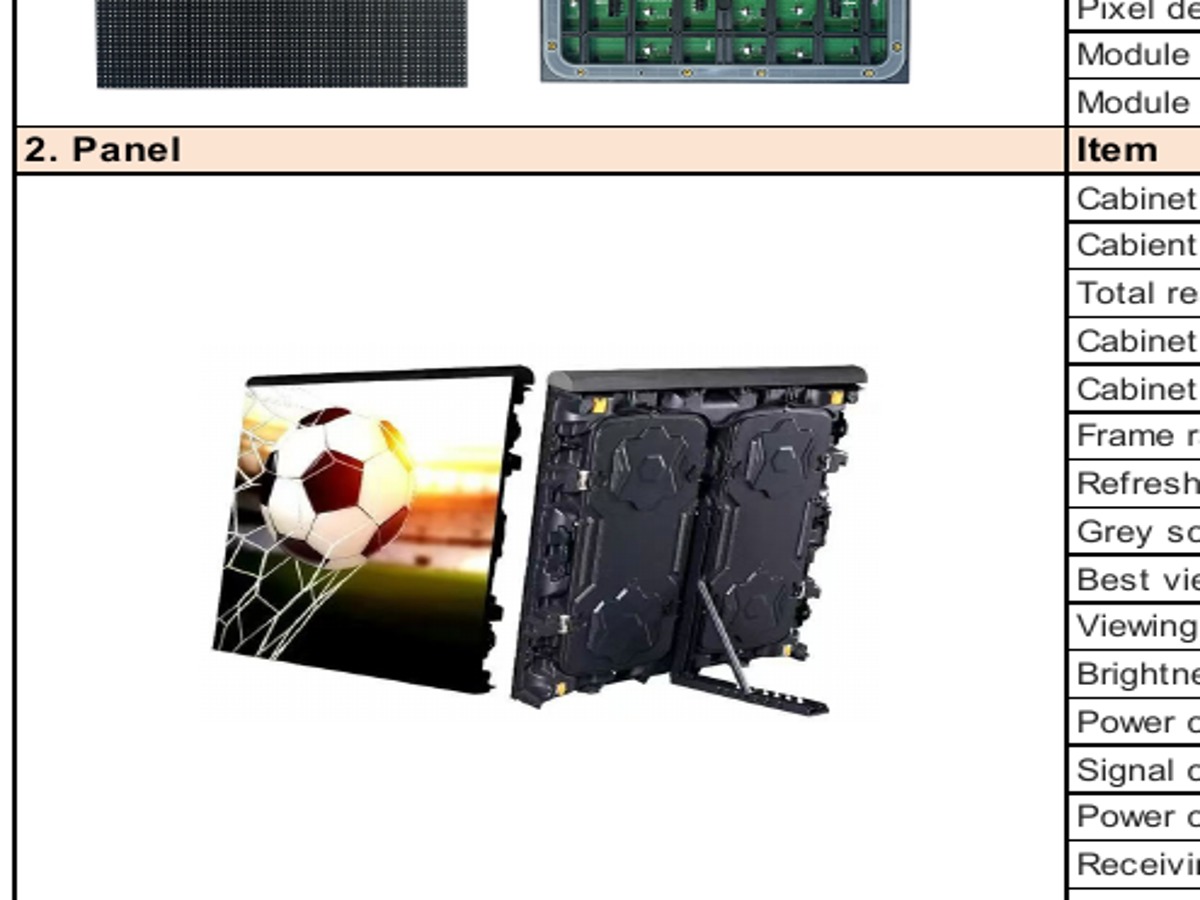

Soft-mask outdoor LED display cabinet and module

Outdoor · soft-mask · high brightness

Source-backed values separated from project selections Final BOM and compliance confirmed before quotationRevision · 01 Oct 2026

Technical parameters

Core data

Documented pixel pitchesSource-backed: P6.67 / P8
LED packageSource-backed: SMD3535
ModuleSource-backed: 320 × 160 mm soft-mask module
Cabinet formatsSource-backed: 960 × 960 mm / 1280 × 960 mm
ConstructionSource-backed: Die-cast aluminium
Cabinet weightSource-backed: Approx. 40 kg in supplied sheets
BrightnessSource-backed: ≥8000 nits in supplied P6.67 / P8 sheets
Refresh rateSource-backed: 3840 Hz
GreyscaleSource-backed: 16 bit
Viewing angleSource-backed: Up to 160° horizontal / 140° vertical
PowerSource-backed: Max. 700 W/m² · average 350 W/m²
ProtectionSource-backed: IP65 stated in supplied sheets
Operating rangeSource-backed: -20°C to +70°C · 10–70% RH
ControlSource-backed: Nova 412 pathway · Cat5e / fibre control options

Product-family visual · final production configuration confirmed per project

Best suited to

Sports-venue perimeter displayOutdoor event displayTraining venuesTemporary sports environmentsHigh-brightness outdoor displayProjects requiring soft-mask modules

Platform features

Documented features for this display platform.

Soft-mask module face
High-brightness outdoor pathway
Die-cast aluminium cabinet
3840 Hz refresh
IP65-rated product-sheet pathway
Computer-synchronised control
Cat5e and optical-fibre transmission pathways

Project confirmation

What gets closed before quotation.

Player / impact-safety requirement
Formal impact / safety evidence where required
Final brightness by venue and daylight condition
Cabinet support and wind design
Ingress-protection evidence for selected build
Power distribution
Camera / broadcast refresh
Destination compliance

Technical confirmation

Items requiring project-specific verification.

Soft-mask construction is not described as player-safe, impact-certified or injury-reducing without separate test evidence.
IP65 is taken from the supplied product specification sheets and is not evidence of marine-corrosion resistance.
The 8000-nit figure applies to the documented P6.67 / P8 soft-mask sheets, not every soft-mask configuration.
