← FÍSVOR Technical DataFÍSVOR — Vision Systems

FÍSVOR · Technical Data Sheet

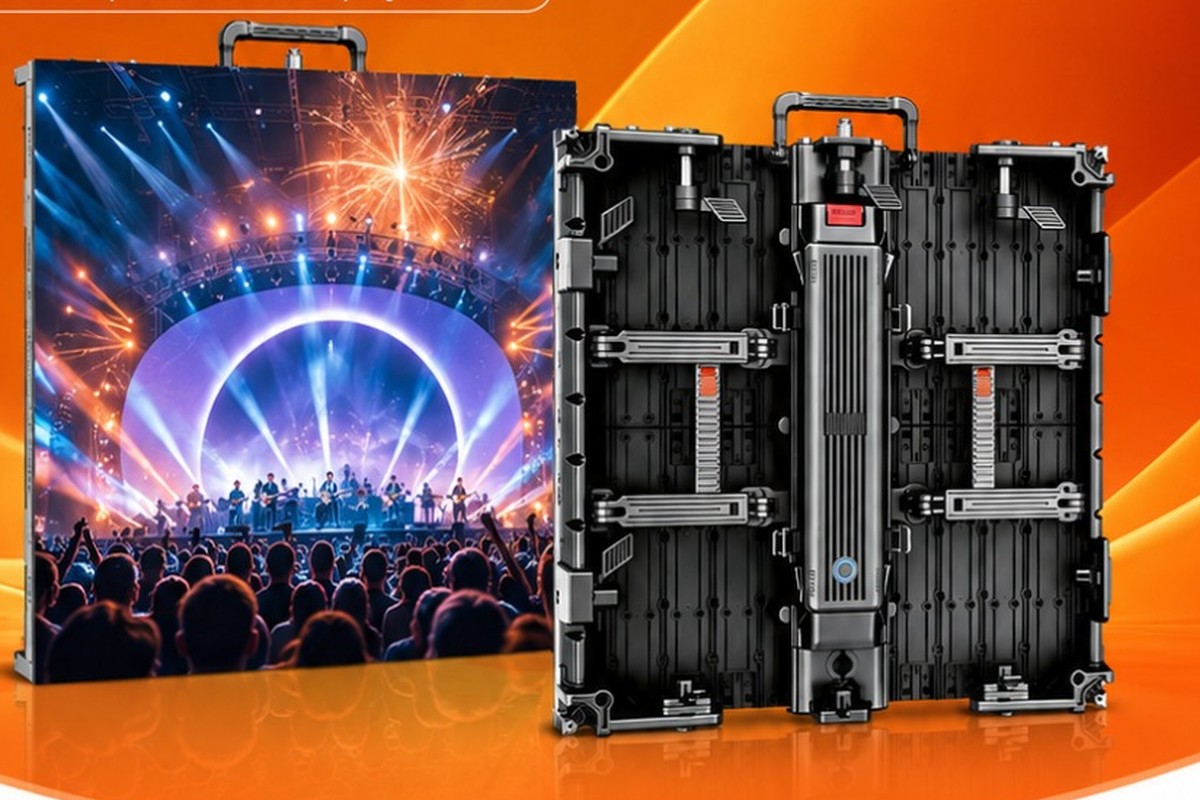

Flexible Curved Rental LED

Creative 500 mm rental cabinet with adjustable curved locks for concave, convex, circular and S-form event-display layouts.

View system
Flexible curved rental LED cabinetCurve · arc · S-form · creative
Verified technical data separated from project selections Final BOM and compliance confirmed before quotationRevision · 21 Nov 2026

Technical parameters

Core data

Pixel pitch
P2.6 / P2.97 / P3.91
Cabinet
500 × 500 × 68 mm
Module
250 × 250 mm
Weight
7.3 kg
Refresh rate
3840 Hz published standard
Greyscale
16 bit
Indoor
800 nits · IP30
Outdoor
4500 nits · IP65
Curve adjustment
Up to ±22.5° cabinet lock
Flexible curved rental LED cabinet

Best suited to

Curved stage wallsCircular display columnsImmersive brand environmentsExhibitionsResort eventsCreative fan zones

Platform features

Documented features for this display platform.

  • Adjustable curved-lock cabinet
  • Concave / convex geometry
  • Inner and outer S-form layouts
  • Quick-lock assembly
  • Edge protection
  • Cable-free detachable HUB-board design
  • Compatibility with selected 500 mm rental formats

Project information

Include these details in your enquiry.

  • Final screen radius / diameter
  • Cabinet count and lock-angle geometry
  • Indoor vs outdoor configuration
  • Support / hanging system
  • Content mapping for curved canvas
  • Camera refresh requirement
  • Transport cases

Supporting technical diagrams

See how the system is built and coordinated.

View full diagram library
HLJÓÐ flexible curved rental LED curved-lock geometry technical diagram
Flexible Curved Rental LED — Curved-Lock Geometry

Concave, convex, circular and S-form display geometry using the 500 × 500 × 68 mm flexible cabinet pathway.

HLJÓÐ LED systems power and control architecture technical diagram
HLJÓÐ LED Systems — Power & Control Architecture

Generic project architecture for content sources, processor, signal distribution, receiving cards, cabinet power and optional monitoring.

HLJÓÐ LED systems installation interfaces technical diagram
HLJÓÐ LED Systems — Installation Interfaces

System-coordination diagram covering LED screen, support structure, building interface, power, signal, access and commissioning boundaries.

FÍSVOR technical data

Compare the six core display platforms.

Project-specific configuration

Turn the data sheet into a buildable screen brief.

Use the Smart LED Project Brief to select viewing distance, pitch, cabinet matrix, resolution, power, installation and delivery requirements. For consultant and procurement workflows, move into the FÍSVOR project brief and Apollo technical review.

Open LED Project Brief Technical Resources
APOLLO NZ GLOBAL · FÍSVOR VENUE DISPLAY SYSTEMSTECHNICAL DATA SHEET · FLEXIBLE CURVED RENTAL LED21 Nov 2026
