Foldable LED Poster Display

Mobile foldable LED poster pathway for retail, hospitality, exhibitions, events and temporary venues where compact storage, rapid deployment and flexible content control are valuable.

View system

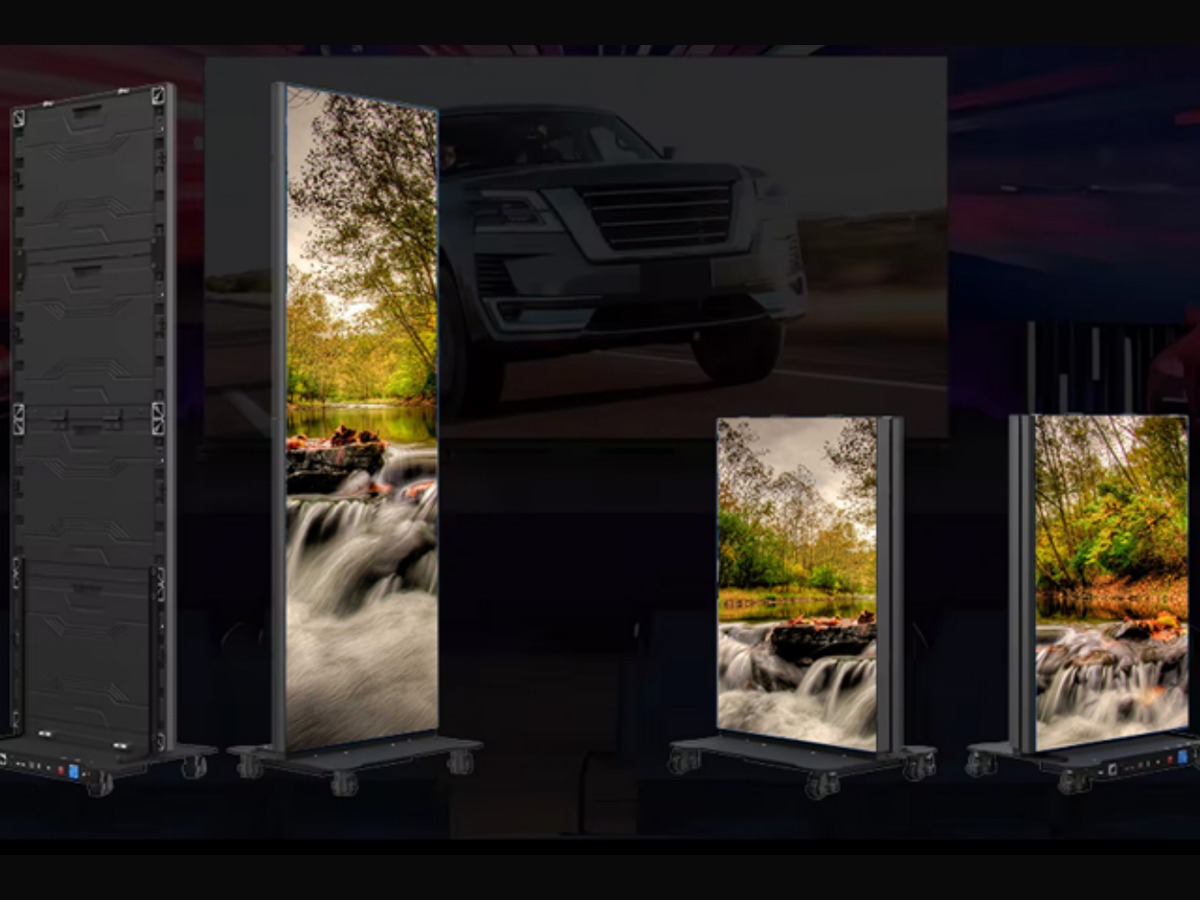

Foldable mobile LED poster displays in upright and folded configurations

Mobile · foldable · front service

Source-backed values separated from project selections Final BOM and compliance confirmed before quotationRevision · 01 Oct 2026

Technical parameters

Core data

Pitch pathwayProject confirmation: Multiple fine-pitch options from approx. P1.2 to P3; final pitch confirmed per build
Display sizeSource-backed: 640 × 1920 mm
ConstructionSource-backed: Die-cast aluminium body
DepthSource-backed: Approx. 50 mm display body shown
WeightSource-backed: Approx. 55 kg in current product sheet
BrightnessSource-backed: 800–1000 nits stated in current product sheet
Refresh rateSource-backed: 3840 Hz
GreyscaleSource-backed: 14 bit
ContrastSource-backed: 4000:1 stated
PowerSource-backed: Average 250 W/m² · maximum 650 W/m²
VoltageSource-backed: 110–240 V
ServiceSource-backed: Front service with pull-out control-box pathway
ConnectivitySource-backed: Wi-Fi / 3G-4G / USB / Cat5 / HDMI pathways shown

Product-family visual · final production configuration confirmed per project

Best suited to

Retail promotionsHotel and resort arrivalsExhibitionsConference foyersTemporary event signageTransport and public interiors

Platform features

Documented features for this display platform.

Foldable mobile form
Front-service design
Multi-unit joining pathway
GOB display option shown
Wheeled base
HDMI / LAN / USB interfaces
Synchronous, asynchronous and cloud-control pathways

Project confirmation

What gets closed before quotation.

Final pixel pitch
Single- or double-sided operating mode
Actual folded transport dimensions
Ingress rating / indoor environment
Content player and cloud platform
Network / SIM requirements
Flight-case or wooden-case packing
Multi-unit joining layout

Technical confirmation

Items requiring project-specific verification.

The source contains inconsistent pitch lists and viewing-angle values, so exact pitch and viewing angle are confirmed against the final build rather than published as one universal value.
The brochure's '6 units, 5-minute setup' and '5-second replacement' statements are treated as marketing claims, not guaranteed installation or service times.
IP20 / IP45 is shown without a clear front/rear or configuration mapping, so no universal ingress claim is made publicly.
Claims such as 50% storage-volume reduction, superior load-bearing and GOB anti-collision / anti-static performance are not treated as quantified certified performance without supporting evidence.
