Outdoor Aluminium LED

Premium fixed outdoor LED platform for stadiums, resorts, event precincts and architectural media where cabinet mass, weather protection, brightness and service access matter.

View system

Fixed outdoor · aluminium · high brightness

Source-backed values separated from project selections Final BOM and compliance confirmed before quotationRevision · 01 Oct 2026

Technical parameters

Core data

Pixel pitchSource-backed: P4.44 / P5.7 / P6.67 / P8 / P10
ModuleSource-backed: 480 × 320 mm aluminium
CabinetSource-backed: 960 × 960 × 88 mm
Cabinet weightSource-backed: Approx. 25 kg
ConstructionSource-backed: Aluminium module + aluminium cabinet
BrightnessSource-backed: Approx. 5500 nits standard · approx. 7500 nits high-brightness option
Refresh rateSource-backed: 3840 / 7680 Hz pathway
Viewing angleSource-backed: 140° horizontal / 120° vertical
ProtectionProject confirmation: IP66 product positioning; formal MC-series laboratory report not currently held
MaintenanceSource-backed: Front & rear
Input voltageSource-backed: AC100–240V
PowerSource-backed: ≤550 W/m² maximum · ≤186 W/m² average
Colour temperatureSource-backed: 6500–9000 K optional range
Final cabinet matrixProject confirmation: Calculated to project dimensions and selected pitch

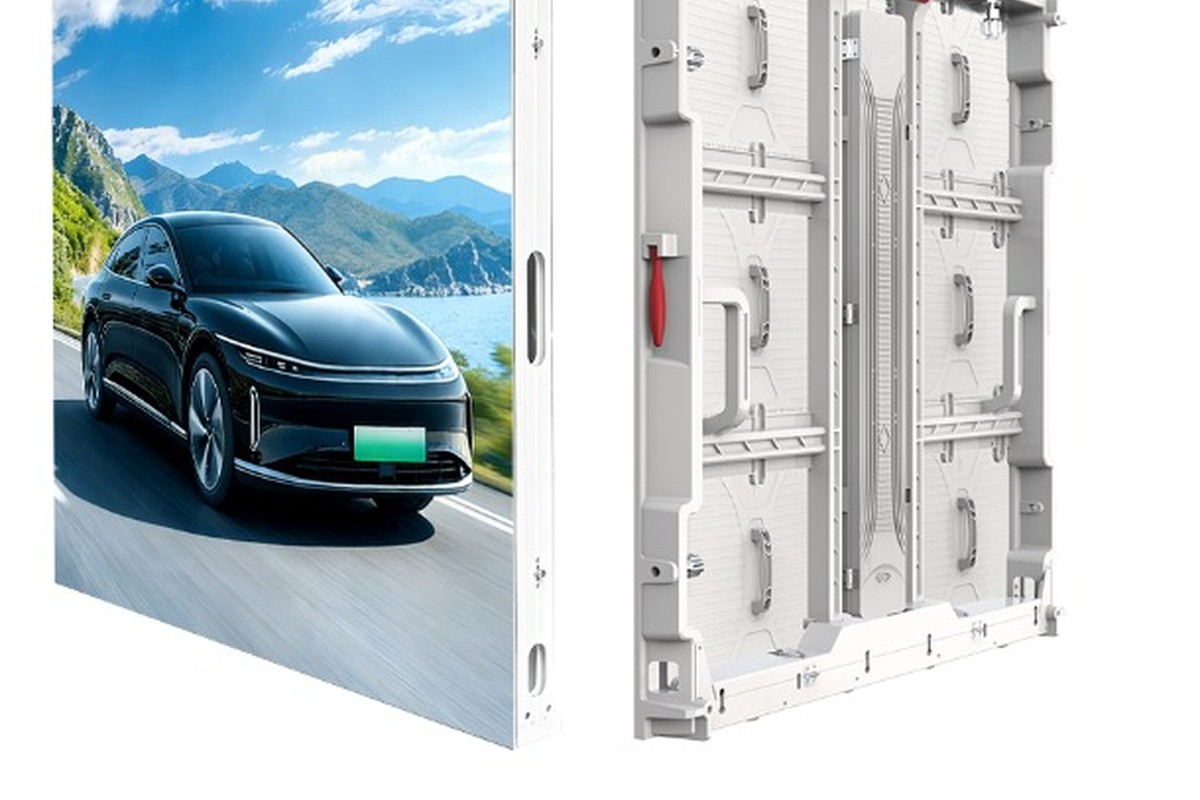

Product-family visual · final production configuration confirmed per project

Best suited to

Stadium & large-venue screensResort outdoor entertainmentOutdoor cinemaArchitectural media wallsFan zones & event precincts90° corner display layouts

Platform features

Documented features for this display platform.

Fast-lock cabinet architecture
Concealed / protected cable-box pathway
Front and rear maintenance
90° / corner installation pathway
Cloud / Wi-Fi / USB / 4G / 5G control pathways
Aluminium heat-dissipation architecture

Project confirmation

What gets closed before quotation.

Final pixel pitch and BOM
Exact brightness by selected pitch / LED configuration
Formal IP / ingress testing where required
Processor / receiving-card architecture
Wind and structural design
Electrical distribution and protection
Service access
Destination certification
Packing schedule and spares

Technical confirmation

Items requiring project-specific verification.

Approx. 5500 nits is the current standard MC brightness position; around 7500 nits is available for higher-brightness configurations. Special-project brightness above this remains configuration-dependent and is not published as a standard specification.
A formal laboratory IP66 report specifically for the MC aluminium series is not currently held. Project-specific testing can be arranged where required.
IP66 positioning is not proof of marine corrosion resistance; beachfront / coastal use requires separate salt-spray, coating, fastener and PCB-protection evidence.
Fire-performance and quantified energy-saving claims are not published without supporting test documentation.
Structural steel, foundations and local sign-off are project-specific.

Supporting technical diagrams

See how the system is built and coordinated.

View full diagram library

Outdoor Aluminium LED — Cabinet Anatomy

960 × 960 × 88 mm cabinet anatomy, six-module layout and public-facing component callouts.

HLJÓÐ outdoor aluminium LED front and rear service technical diagram

Outdoor Aluminium LED — Front & Rear Service

Front-module removal, rear-access components and project-specific service-clearance pathway.

Outdoor Aluminium LED — Module Layout

480 × 320 mm module, 2 × 3 module matrix, 960 mm cabinet and multi-cabinet screen-wall build logic.

HLJÓÐ outdoor aluminium LED 90 degree corner installation technical diagram

Outdoor Aluminium LED — 90° Corner Installation

Conceptual right-angle media-wall geometry with cabinet join, support and service interfaces.

HLJÓÐ LED systems power and control architecture technical diagram

HLJÓÐ LED Systems — Power & Control Architecture

Generic project architecture for content sources, processor, signal distribution, receiving cards, cabinet power and optional monitoring.

HLJÓÐ LED Systems — Installation Interfaces

System-coordination diagram covering LED screen, support structure, building interface, power, signal, access and commissioning boundaries.
