Modular Rental LED 500 / 1000

Die-cast modular rental platform for touring, concerts, conferences, tournaments, resort functions and temporary display walls.

View system

Touring · event · indoor / outdoor

Source-backed values separated from project selections Final BOM and compliance confirmed before quotationRevision · 01 Oct 2026

Technical parameters

Core data

Pixel pitchSource-backed: P1.5625 / P1.953 / P2.5 / P2.604 / P2.976 / P3.91 / P4.81
Cabinet formatsSource-backed: 500 × 500 × 55 mm / 1000 × 500 × 55 mm
Cabinet weightSource-backed: 7.1 kg / 13 kg
BrightnessSource-backed: 500–5000 nits, configuration dependent
Refresh rateSource-backed: 3840–7680 Hz
GreyscaleSource-backed: 14–16 bit
ContrastSource-backed: 8000:1
Viewing angleSource-backed: 140° horizontal / 120° vertical
ProtectionSource-backed: IP30 indoor / IP65 outdoor
MaintenanceSource-backed: Front / rear
Final indoor / outdoor BOMProject confirmation: Selected to event environment and camera requirement

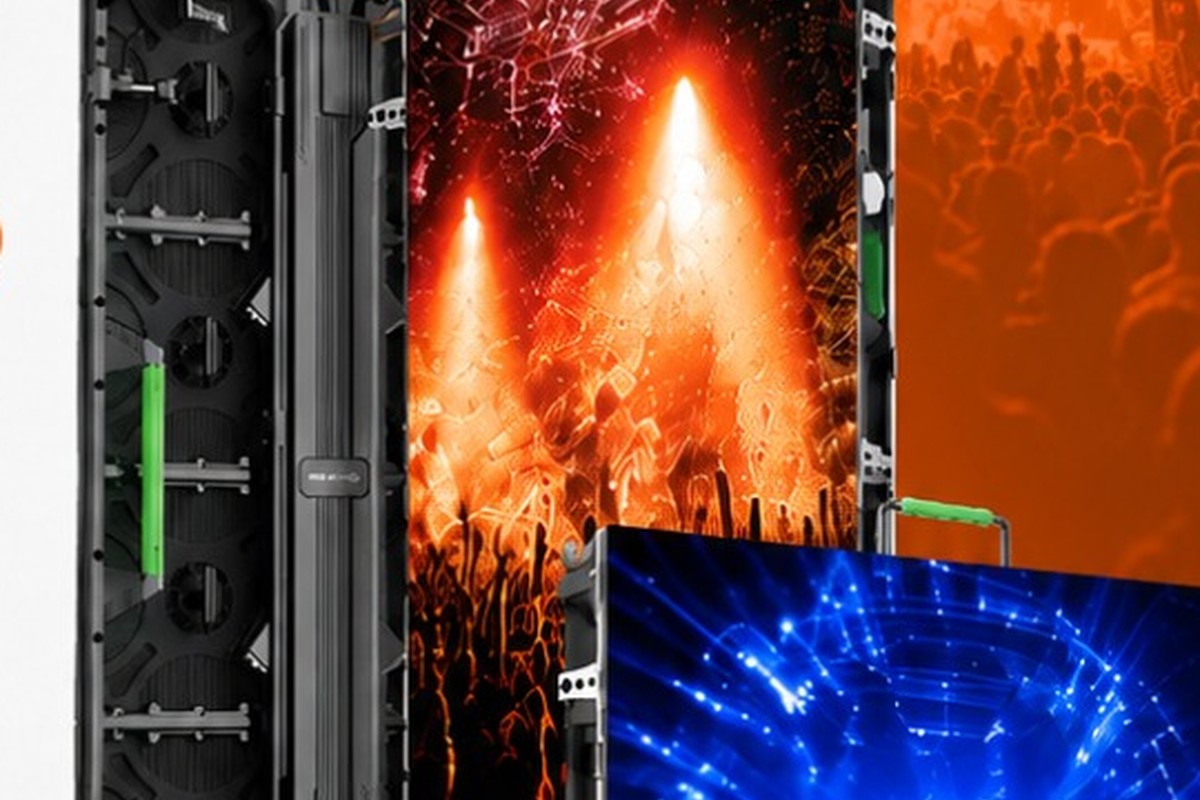

Product-family visual · final production configuration confirmed per project

Best suited to

Concerts & festivalsCorporate eventsSports tournamentsConference & exhibitionResort functionsTemporary fan zones

Platform features

Documented features for this display platform.

Fast-lock cabinet system
500 × 500 and 500 × 1000 mixed-layout compatibility
SMD and GOB indoor-rental pathways
Corner / edge protection
Power monitoring pathway
Power-sharing redundancy pathway
Front and rear maintenance
Hanging and ground-support configurations

Project confirmation

What gets closed before quotation.

Hanging vs ground support
Rigging / ballast design
Camera refresh requirement
Indoor vs outdoor cabinet
Flight-case schedule
Processor / redundancy
Event spares package

Technical confirmation

Items requiring project-specific verification.

5000 nits and IP65 apply to the relevant outdoor configuration, not every rental cabinet.
P1.953 / P2.604 / P2.976 indoor rental source sheets support 3840 Hz and 500–700-nit pathways; GOB and SMD versions must be distinguished in the final BOM.
Some uploaded GOB rental PDFs use an IRG filename but the internal model line omits the G suffix. Treat GOB/SMD identity from the LED encapsulation line and require corrected model sheets before tender use.
Rigging loads and suspended structures require separate engineered design.
The power-sharing feature is a product pathway; final redundancy architecture is confirmed per project.

Supporting technical diagrams

See how the system is built and coordinated.

View full diagram library

HLJÓÐ LED systems power and control architecture technical diagram

HLJÓÐ LED Systems — Power & Control Architecture

Generic project architecture for content sources, processor, signal distribution, receiving cards, cabinet power and optional monitoring.

HLJÓÐ LED Systems — Installation Interfaces

System-coordination diagram covering LED screen, support structure, building interface, power, signal, access and commissioning boundaries.
