Indoor COB Fine-Pitch LED

Slim 16:9 COB display platform for close-view premium rooms, control spaces, boardrooms and high-resolution permanent venue installations.

View system

Close-view · premium · 16:9

Source-backed values separated from project selections Final BOM and compliance confirmed before quotationRevision · 01 Oct 2026

Technical parameters

Core data

Pixel pitchSource-backed: P0.78 / P0.93 / P1.25 / P1.56 / P1.875 documented COB pathways
ModuleSource-backed: 150 × 168.75 mm across the documented COB family
CabinetSource-backed: 600 × 337.5 mm standard; 600 × 675 mm option on selected pitches
WeightSource-backed: Approx. 4–7.9 kg by documented cabinet configuration
BrightnessSource-backed: Approx. 500–600+ nits across documented P0.78–P1.875 COB sheets
Refresh rateSource-backed: 3840–7680 Hz
GreyscaleSource-backed: 16 bit
ConstructionSource-backed: Die-cast aluminium
ProtectionProject confirmation: Configuration-specific; IP54 stated in current P1.56 / P1.875 sheets
MaintenanceSource-backed: Front maintenance
Cabinet aspectSource-backed: 16:9
Final wall resolutionProject confirmation: Calculated from cabinet matrix and selected pitch

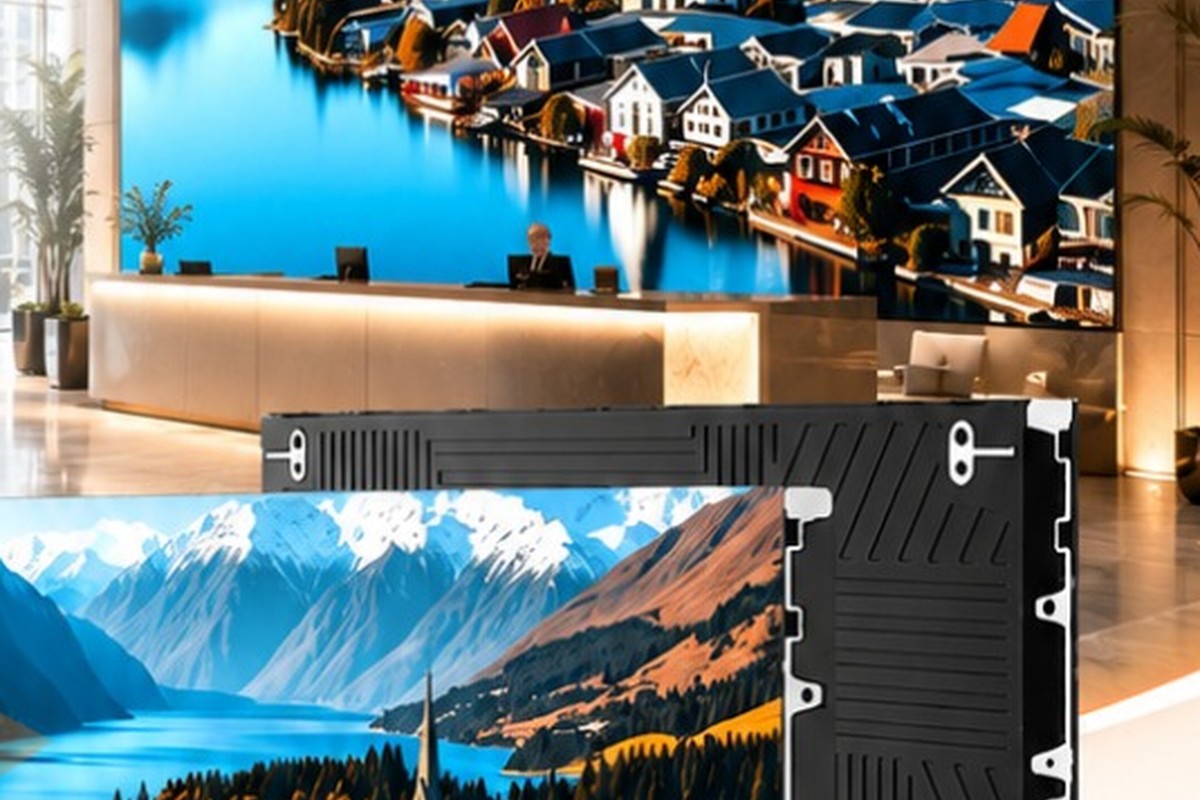

Product-family visual · final production configuration confirmed per project

Best suited to

BoardroomsControl roomsPremium hospitalityClose-view presentationExecutive / VIP roomsHigh-resolution permanent walls

Platform features

Documented features for this display platform.

Native 16:9 cabinet geometry
2K / 4K / 8K wall-layout pathway
Front-service installation
Optional redundant power-supply pathway
Optional redundant control-card pathway
Close-view COB architecture

Project confirmation

What gets closed before quotation.

Closest viewing distance
Target native resolution
Room brightness
Camera / streaming requirement
Wall depth and service access
Redundancy requirement
Processor / inputs

Technical confirmation

Items requiring project-specific verification.

2K / 4K / 8K describes achievable wall-layout pathways; the final native resolution must be calculated from actual cabinet count and pitch.
The P1.25 COB sheet lists 600 × 337.5 mm as 640 × 360 pixels, but the stated 1.25 mm pitch and module geometry imply 480 × 270. That resolution is held pending supplier correction.
The P1.875 sheet lists a 600 × 337.5 mm cabinet at 240 × 180 pixels even though the stated 1.875 mm pitch and module geometry imply 320 × 180; cabinet resolution is held pending correction.
The P0.93, P1.25 and P1.56 COB sheets state max. 450 W/m² and average 20 W/m²; the average value appears anomalous and is not used publicly until corrected.
Anti-impact / anti-static / environmental marketing claims are not treated as project compliance data without supporting test documentation.
Redundant power and control are options, not assumed standard inclusions.

Supporting technical diagrams

See how the system is built and coordinated.

View full diagram library

HLJÓÐ LED systems power and control architecture technical diagram

HLJÓÐ LED Systems — Power & Control Architecture

Generic project architecture for content sources, processor, signal distribution, receiving cards, cabinet power and optional monitoring.

HLJÓÐ LED Systems — Installation Interfaces

System-coordination diagram covering LED screen, support structure, building interface, power, signal, access and commissioning boundaries.
