Platform features
Documented features for this display platform.
- GOB protected display surface
- 3840 Hz refresh pathway
- Front-facing commercial display
- Die-cast cabinet option
- 16-bit greyscale
- Project-specific controller and cabinet selection
← FÍSVOR Technical Data
FÍSVOR · Technical Data Sheet
Indoor GOB LED
Indoor GOB display pathway for commercial and venue environments where a protected LED surface and front-facing visual performance are priorities.
Indoor · GOB · protected LED faceTechnical parameters
Core data
- Documented pixel pitchesSource-backed
- P1.25 / P1.53 / P1.86 / P2 / P2.5 / P3.076 / P5 verified in current GOB sheets
- LED constructionSource-backed
- GOB FlipChip pathway
- ModuleSource-backed
- 320 × 160 mm
- Cabinet formatsSource-backed
- 640 × 480 mm / up to 960 × 800 mm in supplied sheets
- ConstructionSource-backed
- Die-cast aluminium / iron options shown
- BrightnessSource-backed
- ≥500–700 nits depending documented pitch
- Refresh rateSource-backed
- 3840 Hz
- GreyscaleSource-backed
- 16 bit
- Viewing angleSource-backed
- Up to 160° horizontal / 140° vertical
- PowerSource-backed
- Max. 700–800 W/m² · average 350–400 W/m² by configuration
- Ingress positioningSource-backed
- IP40 / IP43 / IP54 shown by documented indoor configuration
- Operating rangeSource-backed
- -20°C to +70°C · 10–70% or 10–90% RH depending pitch

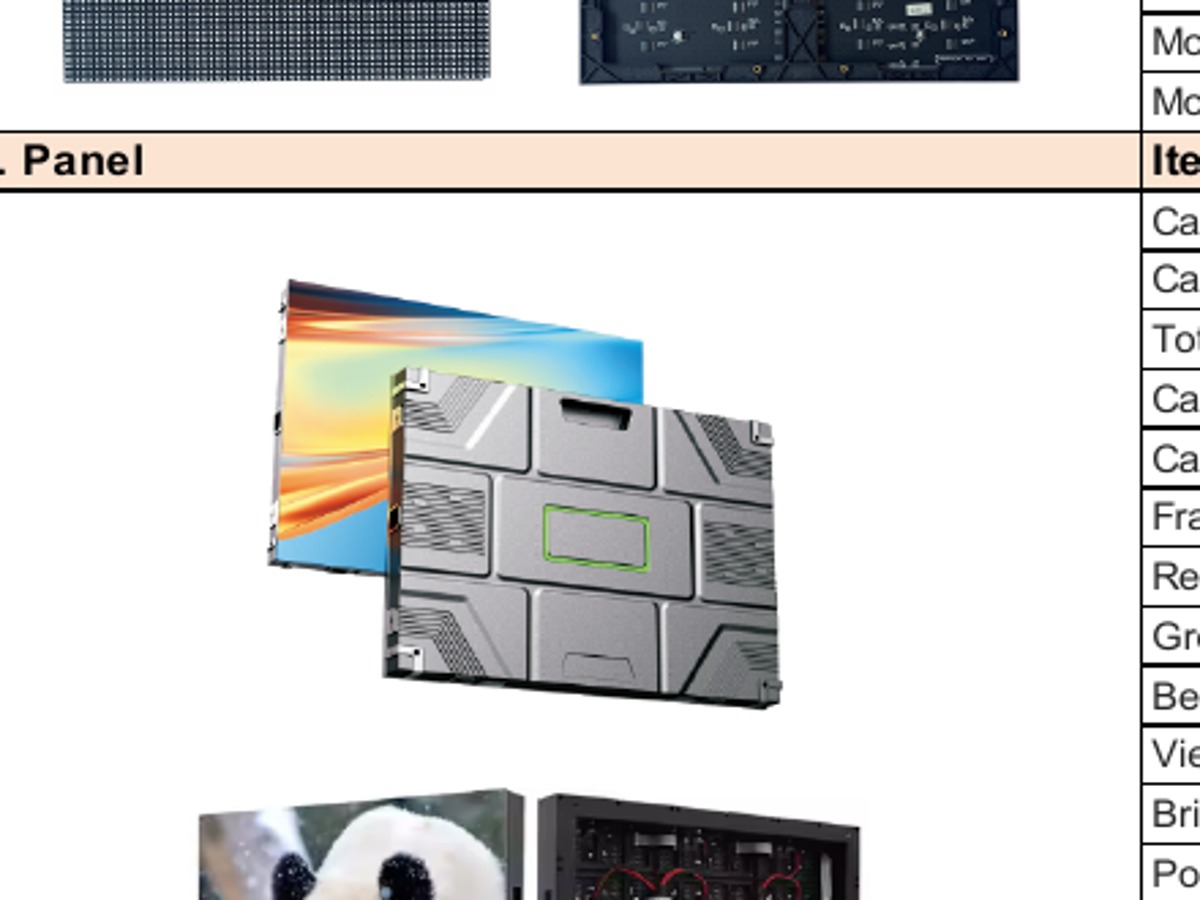

Product-family visual · final production configuration confirmed per projectBest suited to
Retail and mall displayHospitality interiorsConference environmentsPublic-facing indoor displayExhibitionsHigh-contact commercial areas
Project confirmation
What gets closed before quotation.
- Final pitch and GOB construction
- Exact cabinet format
- Closest viewer
- Room brightness
- Surface cleaning / contact environment
- Front-service requirement
- Power / thermal design
- Destination compliance
Technical confirmation
Items requiring project-specific verification.
- One supplied P4 file is named as an outdoor-GOB file while the sheet itself identifies an indoor GOB model and contains conflicting brightness / ingress data. P4 GOB is therefore held from the public verified-pitch list until corrected documentation is supplied.
- The verified GOB pitch family now extends down to P1.25. The P1.25 GOB sheet supports 3840 Hz, ≥600 nits, 10–90% RH and IP54 positioning, but its average-power figure of 20 W/m² appears anomalous and is held pending correction.
- GOB marketing claims such as anti-collision, moisture resistance or anti-static performance are not treated as certified performance without supporting tests.
- Ingress ratings are configuration-specific and should not be generalised across the indoor GOB family.
