Run-off + circulation
The 13.41 × 6.10 m playing rectangle is only the marked court. Allow space for safe movement beyond the baselines and sidelines.
LUTHVAR Pickleball · Court planning
Pickleball court dimensions and recommended playing area.
Use the playing-line dimensions first, then allow sufficient run-off and circulation around the court. The standard pickleball playing rectangle is 13.41 m long × 6.10 m wide for both singles and doubles.
Request a Court Supply Quote View specificationsAsk Apollo AIView My ProjectPickleball court systemsBrowse Product DirectoryExplore Apollo pickleball court systemsUse the Pickleball Space PlannerView pickleball subfloor preparation guidance
13.41 × 6.10 m playing lines18.29 × 9.14 m minimum overall surface19.51 × 10.36 m recommended new-build surface2.13 m non-volley zone each side
Product details
Key court dimensions
Use these figures for design planning, then confirm run-off, fencing, lighting, drainage, accessibility and the selected surface system for the actual project.
01Standard playing court
13.41 m × 6.10 mSame playing-line dimensions for singles and doubles.
02Minimum overall playing surface
18.29 × 9.14 m (60 × 30 ft)Minimum surface; not the preferred new construction footprint.
03Recommended new-construction surface
19.51 × 10.36 m (64 × 34 ft)Recommended new-build playing surface before other circulation and site requirements.
04Net height

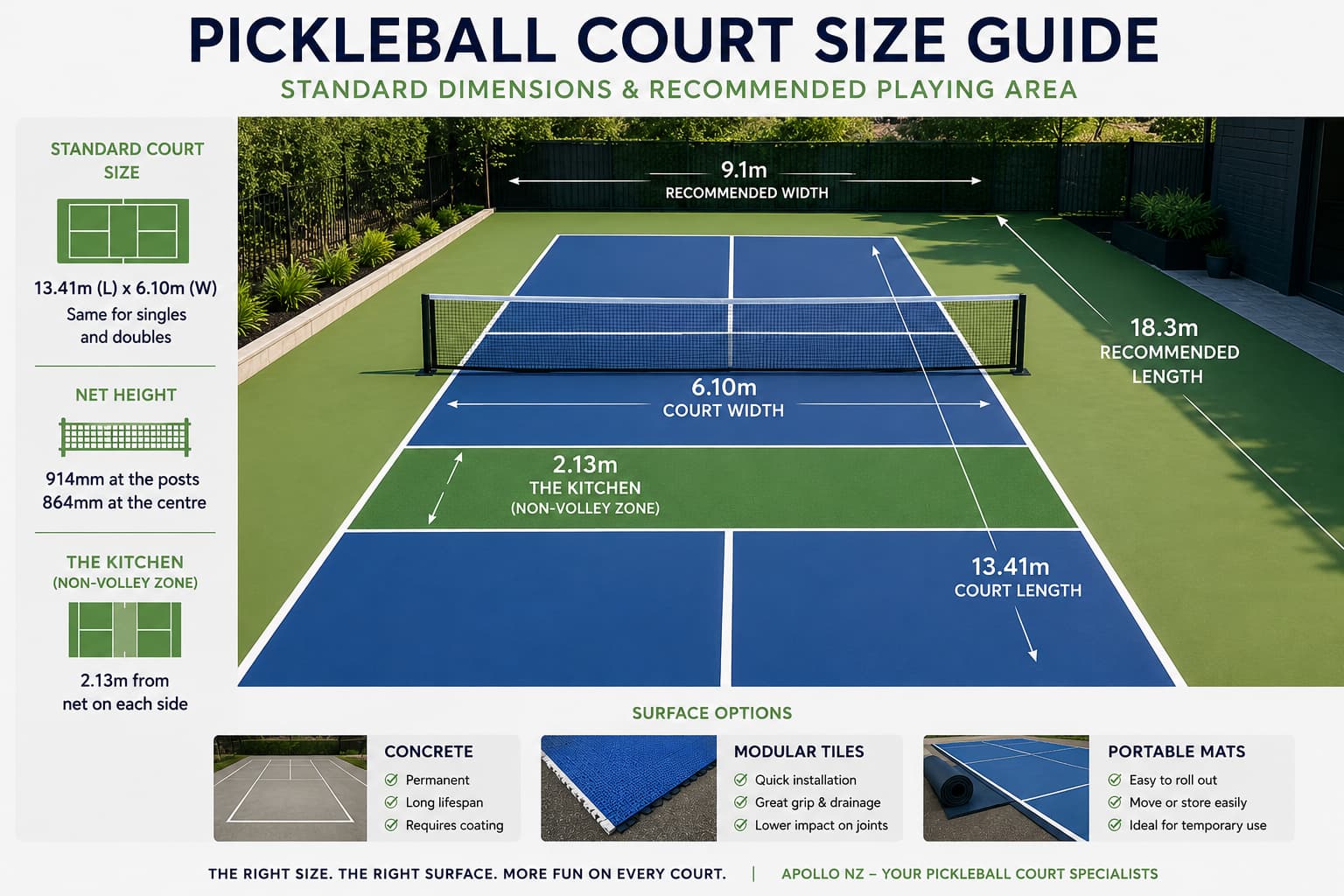

914 mm posts · 864 mm centreReference heights shown in the Apollo court-size guide.
05Kitchen / non-volley zone
2.13 m from net each sideThe non-volley zone extends 2.13 m from the net on both sides.
06Surface pathways
Concrete · modular tiles · portable / roll-out flooringSurface selection should follow base condition, drainage, portability and required playing feel.
Court-size information is for project planning. Final clearances, run-off, fencing, lighting, drainage, accessibility and local requirements should be confirmed for the actual site before installation.

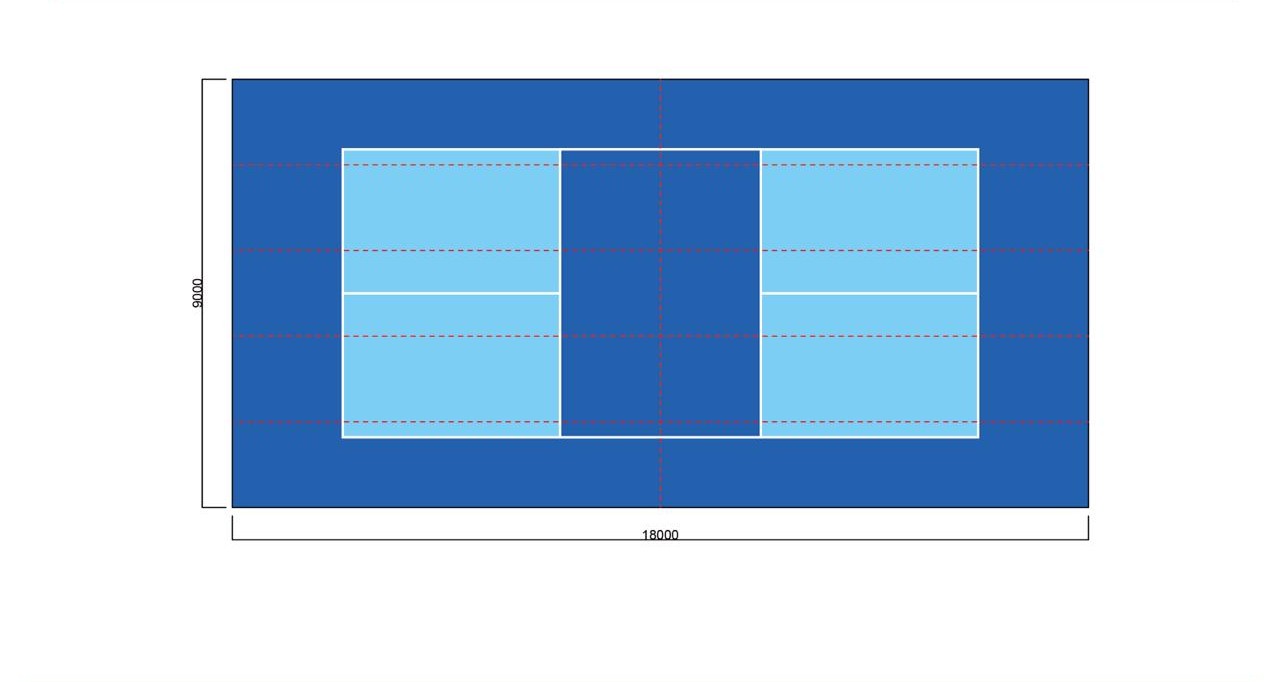

Court planning drawings
Use both the playing dimensions and the surrounding project envelope.
Use the verified dimensions in the specification table for project planning. Illustrations are only for orientation, not construction or final line marking.
Applications + project fit
Plan the whole court, not only the white lines.
Surface + base
Concrete condition, drainage and required playing feel determine whether modular tile, roll-out flooring or another surface pathway is suitable.
Net + centreline planning
Fixing points, portable-net storage and centreline alignment should be coordinated before final court marking.
Fencing + lighting
Fence setbacks, access gates and light-pole positions should sit outside the playing envelope without creating obstructions.
Applications
HomesClubsSchoolsCouncilsRetirement villagesResortsIndoor hallsCommercial venues
