Community / education

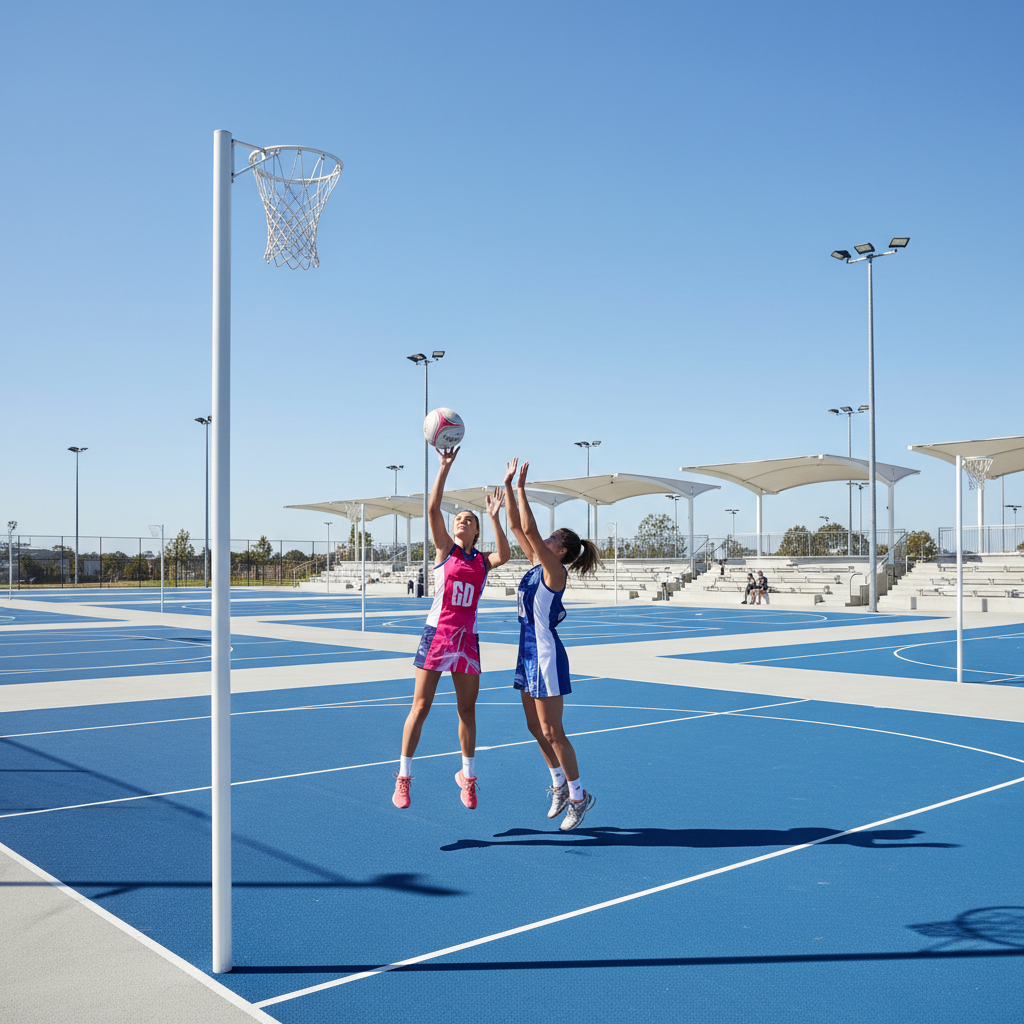

School/community court with durable surface, safe post installation and practical lighting.
GLOBAL SPORTS TECHNICAL LIBRARY
COURT · NETBALL TECHNICAL CENTRE
Netball facility technical centre.
A complete netball planning reference for outdoor courts, multi-court complexes and indoor arenas. The page keeps netball-specific court, post, run-off and operating requirements separate from basketball and volleyball.
Apollo Technical Reference · Edition 2026.1 · Governing references reviewed October 2026 · always verify the current competition documents for final design.
0130.5 × 15.25 m playing court
023.05 m goalpost height
03Outdoor + indoor pathways
04Multi-court + arena planning
INTERACTIVE FACILITY MAP
See the netball facility as one connected system.
Select a layer to see why it matters. This is a conceptual coordination map—not a dimensioned court, field, structural or compliance drawing.
NETBALLPLAYING AREA
FACILITY ENVELOPE · CIRCULATION · TECHNICAL INTERFACES
SPORT→SURFACE→EQUIPMENT→STRUCTURE→LIGHT→SPECTATORS→TECHNOLOGY→OPERATIONS
FACILITY LEVEL MATRIX
The technical brief changes with the level of venue.
Do not copy elite-event requirements into every community project—or under-specify a competition venue from a school checklist.
Club / academy
Club venue with repeat use, team/official areas, storage, spectator and maintenance planning.
Competition
Competition pathway with controlled court envelope, equipment evidence, lighting and event operations.
Elite / major venue
Indoor arena / major event pathway with sprung floor, seating, FÍSVOR, media and multi-use changeover.
12 TECHNICAL TOPICS
Design the complete netball environment.
Each topic is part of the same facility. Changing one layer can affect several others, which is why product selection should follow the complete brief.
01
Playing geometry
Protect the complete netball court, run-off, post positions, team benches, officials, substitution and spectator edges. Multi-court sites need circulation between courts, not just repeated painted rectangles.
02
Surface / playing system
Outdoor acrylic/modular and indoor resilient/sprung-floor pathways should be selected by environment, competition level, shock/slip performance and maintenance.
03
Sport equipment
Goalposts, rings, nets, sleeves or bases, post padding and storage need exact geometry and safe restraint. Do not substitute basketball equipment imagery or specification.
04
Lighting
Coordinate player visibility, vertical ball tracking, glare, outdoor spill light and indoor roof-service conflicts.
05
Spectators
Plan sideline viewing, benches, accessible positions, covered viewing and larger arena seating without reducing run-off.
06
Structure + building interface
Coordinate post sleeves/foundations, indoor floor sockets, roof-mounted dividers, scoreboards, lighting and any spectator covers.
07
Environment
Outdoor court drainage, UV, wind and heat need separate planning from indoor temperature, ventilation and glare.
08
Accessibility
Accessible arrival, viewing, circulation and inclusive community-use pathways should be built into the court/arena rather than added later.
09
Storage + changeover
Posts, padding, benches, divider systems and multi-sport equipment need dedicated bays and movement routes, especially in shared halls.
10
Technology + controls
FÍSVOR scoreboard/timing, PA, cameras and venue information systems should be positioned around officials and spectator sightlines.
11
Evidence + standards
Keep governing-body court/equipment requirements, exact-product evidence and destination building/electrical requirements distinct.
12
Maintenance + lifecycle
Inspect playing surface, lines, post sleeves/bases, rings, nets, padding, lighting, scoring and spectator systems on a defined venue schedule.
EVIDENCE LADDER
Do not collapse different kinds of evidence into one “approved” claim.
Official rule / governing reference
Defines the sport or competition requirement. It does not automatically approve a supplier or construction detail.
Product test / approval
Applies to an exact surface, equipment item or system configuration and the scope stated by the governing programme.
Installed facility test / certification
Where the sport offers it, field/court/facility testing confirms the finished installation rather than only the product.
Project engineering
Foundations, supports, wind/seismic loads, electrical, building interfaces and local-code compliance remain project-specific.
Commercial release
Warranty, documentation, spares, freight, installation responsibility and exact quoted configuration are closed before order.
SPECIFICATION INPUTS
Information a useful netball specification should contain.
These inputs can become a consultant brief, RFP schedule or Apollo project review without prematurely inventing an exact model.
01
Outdoor or indoor
02
Court count
03
Competition / user level
04
Run-off and overall footprint
05
Surface and base
06
Goalpost mounting
07
Lighting
08
Spectator / shade / seating
09
Scoring / timing
10
Storage and multi-sport changeover
PERFORMANCE-SPECIFICATION STARTERS
Clause intent that can be developed into the project specification.
These are performance-based starting points, not a substitute for the project architect, engineer, governing body or exact selected-system data.
Playing environment
Protect the complete netball court, run-off, post positions, team benches, officials, substitution and spectator edges. Multi-court sites need circulation between courts, not just repeated painted rectangles.
Surface performance
Outdoor acrylic/modular and indoor resilient/sprung-floor pathways should be selected by environment, competition level, shock/slip performance and maintenance.
Evidence and approvals
Keep governing-body court/equipment requirements, exact-product evidence and destination building/electrical requirements distinct.
Maintenance and lifecycle
Inspect playing surface, lines, post sleeves/bases, rings, nets, padding, lighting, scoring and spectator systems on a defined venue schedule.
DRAWING ROADMAP
Draw the interfaces that words usually miss.
Public planning diagrams can define intent. Exact fabrication, foundation, fixing and model drawings should follow only when the selected system is verified.
Court + run-off plan
Post sleeve / base detail
Multi-court circulation plan
Indoor hall equipment overlay
Lighting plan
Spectator / team / officials layout
Storage/changeover plan
TECHNICAL DIAGRAM PACK
Netball planning diagrams for the interfaces that written specifications miss.
Four vector sheets cover plan geometry, vertical coordination, equipment/operations and spectator/technology interfaces. Verified sport dimensions are shown only where the technical baseline supports them; conceptual allowances remain explicitly labelled.
PACKLTV-NETBALL
SPORTNetball
REFERENCE REVIEW04 OCT 2026
STATUSPLANNING / COORDINATION
01
Dimensioned Plan
02
Vertical / Section Coordination
03
Equipment + Operations Zoning
04
Spectator + Lighting + Technology
Planning diagram status
These diagrams organise coordination information. They are not fabrication drawings, engineering drawings, construction details, certified court/field layouts or statutory documentation. Current governing-body requirements, exact selected-system drawings and local professional design take precedence.
MAINTENANCE & LIFECYCLE
Make performance maintainable.
01Surface cleaning / recoating
02Line-marking checks
03Post and ring inspection
04Sleeve / cap maintenance
05Lighting checks
06Padding / net replacement
07Drainage checks outdoor
08Storage inventory
TROUBLESHOOTING
Common symptoms worth investigating.
Post movement
Check sleeve/base tolerance, restraint and floor/foundation interface.
Outdoor ponding
Check base flatness, falls, drainage and surface blockage.
Indoor glare
Review fixture position, reflective surfaces and background contrast.
Crowded sidelines
Recheck run-off, benches, scorer/official positions and spectator setback.
Surface too slippery
Check contamination, finish wear, cleaning chemistry and moisture.
Slow hall changeover
Review post handling, storage location and shared equipment conflicts.
SPORTS PLANNING CALCULATORS
Turn early ideas into measurable planning inputs.
These are concept-planning tools—not engineering, certification, accessibility or photometric calculators. Every input is visible and editable so assumptions stay explicit.
30.5 × 15.25 m playing court with an editable 3.05 m planning surround on all sides.
CALCULATOR 01
Facility footprint
36.6 × 21.4 mconcept precinct rectangle
781.4 m²concept footprint
1playing units
CALCULATOR 02
Surface planning quantity
465.1 m²playing-area total
488.4 m²planning quantity incl. allowance
This is area arithmetic only. Roll widths, tile modules, seams, line systems, perimeter details and manufacturer-specific waste factors can change the final order quantity.
CALCULATOR 03
Spectator concept
50seats per row concept
27 mapproximate row length
Not a code or sightline calculation. Final rows, aisles, vomitories, accessible positions, guards, rake and egress must be developed by the project team.
BUILDER 04
Lighting brief
01Confirm the sport and exact competition level.
02Define the playing area plus spectator, camera and officials zones.
03Coordinate luminaire locations with structure, roof services, poles and maintenance access.
04Control glare for players, officials and spectators.
05Confirm local electrical, emergency-lighting and spill-light requirements.
06Define training, match and reduced-energy operating modes where controls support them.
NEXT STEP
Carry the assumptions into the technical and specification workflow.
The envelope is a planning input, not a universal certification dimension. Indoor and outdoor projects require different surface, lighting and environmental design.
PRIMARY GOVERNING REFERENCES
Use Apollo to navigate the technical problem—then verify the rule at source.
We link to the governing organisation rather than republishing whole standards. Rules, manuals, approval lists and competition requirements change.
Reference review date: 4 October 2026. Governing-body content remains owned and controlled by the relevant organisation. Apollo's summaries are planning aids, not substitutes for the current official rules or local professional advice.
CITE THIS RESOURCE
Netball Facility Technical Centre
- Publisher
- Apollo NZ Global
- Edition
- 2026.1
- Reviewed
- 4 October 2026
Apollo NZ Global. Netball Facility Technical Centre. LUTHVAR Global Sports Technical Library, 2026.1. https://apollonzglobal.com/netball-systems/facility-technical-centre
Technical reference & source policyPROJECT-SPECIFIC REVIEW
Turn the technical reference into a controlled netball project brief.
Apollo remains supply-only. Local design, foundations, civil works, installation, statutory approvals and professional sign-off remain with the appropriate project parties unless a specific support item is expressly included.
