High-capacity sound-attenuated diesel generator configuration
RHELGAN Power & Energy SystemsRHELGAN Development & Humanitarian Systems

POWER & ENERGY SYSTEMS · 500 KVA STANDBY CLASS

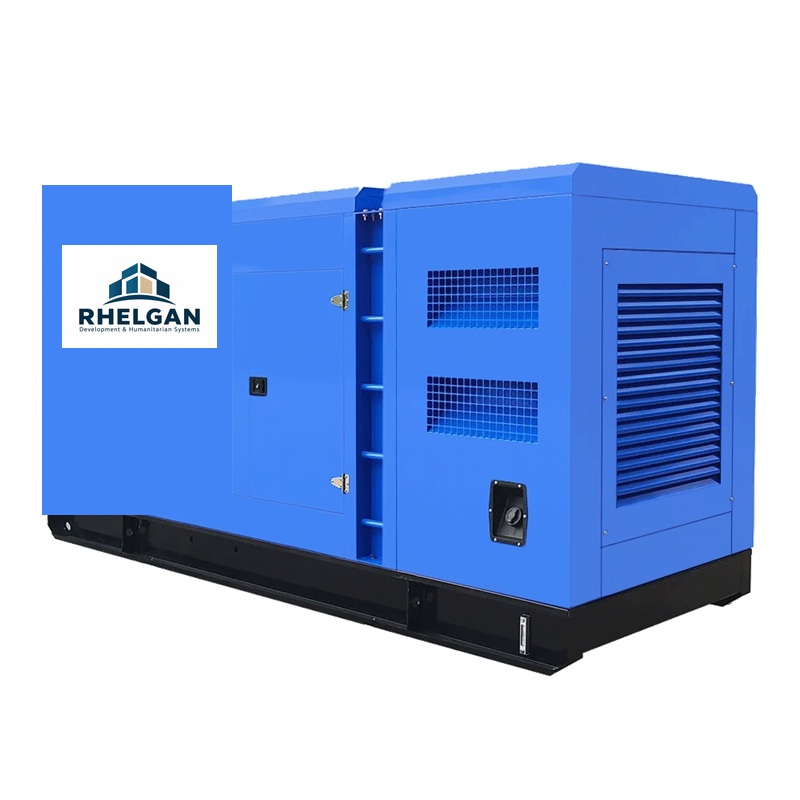

RHELGAN POWER 500

A project-configured generator system for international development, remote infrastructure and essential-service applications. Start from a proven standard configuration, then set the electrical, climate, control, enclosure and fuel package for the destination.

Direct project answers

What project teams need to know about RHELGAN POWER 500.

A concise answer layer covering application, evidence, configuration and project inputs.
01

What is RHELGAN POWER 500?

500 kVA standby class. Reference 50 Hz Perkins configuration: 438 kVA prime / 500 kVA standby, Perkins 2206A-E13TAG6, 75 L/h at full load. Final…

02

What projects are suitable for rhelgan power 500?

Typical project pathways include development infrastructure, remote communities, critical facilities, and international project power. Final suitability depends on the exact configuration, site conditions, operating requirements and destination.

03

What information is needed to specify rhelgan power 500?

Before specification or quotation, the project review should confirm: Verified product specifications or documented product facts; Clear applications, limitations and configuration boundaries; Project inputs required for manual quotation or technical review; Apollo supply-only scope and purchaser/local-project responsibilities. Claims are kept tied to the exact proposed system rather than transferred from a related product or reference configuration.

04

Can Apollo NZ Global supply rhelgan power 500 internationally?

Apollo can supply suitable projects internationally where the product and destination pathway are current. Send the project location, intended use, dimensions or quantities, timing, relevant drawings or photographs, and any known performance, compliance or environmental requirements for review.

REFERENCE PRIME438 kVA350 kW
REFERENCE STANDBY500 kVA400 kW
REFERENCE ENGINEPerkins 2206A-E13TAG650 Hz baseline
FULL-LOAD FUEL75 L/hReference @ 100% load

Reference configuration

A defined starting point, not a one-size-fits-all generator.

The figures below are based on a current 50 Hz Perkins-powered silent reference configuration from the manufacturing technical schedule. A final RHELGAN unit may change engine, alternator, frequency, voltage, enclosure, controller, tank, cooling and emissions configuration to suit the project country and duty.

Prime rating
438 kVA / 350 kW
Standby rating
500 kVA / 400 kW
Reference engine
Perkins 2206A-E13TAG6
Engine configuration
6 cylinders · 12.5 L displacement
Lubricating oil capacity
40 L
Fuel consumption
75 L/h at 100% load · reference configuration
Open-set dimensions
3.30 × 1.15 × 2.10 m
Open-set dry weight
3,450 kg
Open-set tank
640 L
Silent dimensions
4.20 × 1.50 × 2.10 m
Silent dry weight
4,500 kg
Reference silent tank
770 L
Frequency
50 Hz / 60 Hz · destination selected

Configuration capability

Build the power package around the site.

Standard systems first, with project-specific options added only where the operating environment or duty requires them.

50 Hz / 60 Hz configured to destination grid requirements
Single- and three-phase configurations where applicable
Open, silent, mobile and containerised formats
Automatic mains failure / ATS pathways
Deep Sea DSE7320 control available with remote-monitoring capability
Parallel and synchronised multi-generator systems available
Brushless AVR alternator with 100% copper windings; genuine Stamford or Leroy-Somer available
Standard fuel autonomy can be extended with larger or external tanks
High-ambient cooling options, including 50°C radiator configurations where technically suitable
Tropical, dusty and enhanced-corrosion packages selected to project exposure
Solar + battery generator-backup integration available as a project-engineered pathway
RHELGAN project branding available on production units and documentation

Typical applications

Designed for essential services and difficult destinations.

01

Major community infrastructure

02

Large water + wastewater systems

03

Critical facilities + programme hubs

04

Prime or standby infrastructure power

Electrical configuration

Frequency, voltage, phase, earthing, protection and connection arrangement are set from the destination grid and project brief.

Controls + ATS

Manual, AMF and ATS pathways are available, with DSE7320 control and remote-monitoring capability where selected.

Climate + enclosure

Silent, weatherproof, high-ambient, dusty-environment and enhanced-corrosion packages are selected against actual exposure.

Hybrid + parallel

Generator backup can be coordinated with solar PV, battery storage or synchronised multi-set systems through a project-specific control architecture.

Quote release bundle

The rating is only useful when the exact generator package follows it.

Before a RHELGAN POWER class becomes a project order, the quoted configuration should carry these technical, logistics and lifecycle controls with it.

Approved project datasheet with prime / standby basis, voltage, phase and frequency
Exact engine, alternator, controller, ATS and enclosure configuration
Load schedule and motor-start / transient review supplied by the project team where relevant
Ambient-temperature, altitude, corrosion and enclosure package confirmed for the destination
Fuel-tank, runtime, filling, bunding and local fuel-system responsibilities
Noise, emissions and certification evidence matched to the exact quoted configuration
Packing, dry weight, lifting points, unloading and site-access requirements
Commissioning, manuals, recommended spares, warranty and service responsibility
Project specification control

RHELGAN POWER model names are planning classes. Published reference figures are not a substitute for final electrical-load analysis, motor-start review, local compliance, site engineering or the approved project datasheet. Noise performance, emissions, ambient derating, altitude derating, corrosion package, warranty and certifications are confirmed for the exact quoted configuration.

RHELGAN · POWER & ENERGY SYSTEMS

Tell us where the generator is going and what it needs to keep running.
