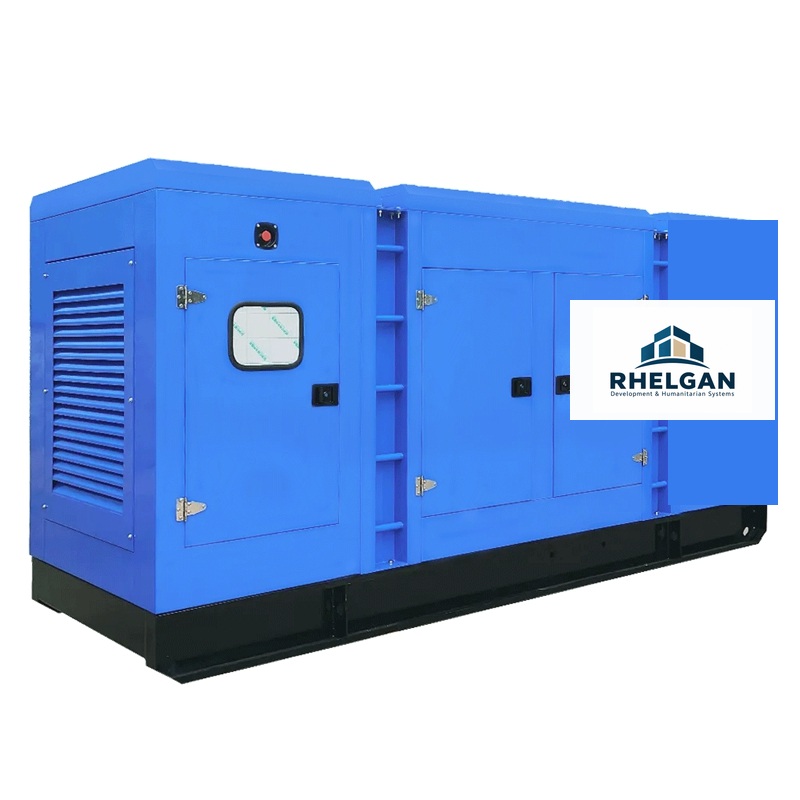

Large sound-attenuated diesel generator for infrastructure projects

POWER & ENERGY SYSTEMS · 300 KVA STANDBY CLASS

RHELGAN POWER 300

A project-configured generator system for international development, remote infrastructure and essential-service applications. Start from a proven standard configuration, then set the electrical, climate, control, enclosure and fuel package for the destination.

Start project brief Upload RFP / specifications

REFERENCE PRIME275 kVA220 kW

REFERENCE STANDBY300 kVA240 kW

REFERENCE ENGINEPerkins 1506A-E88TAG450 Hz baseline

FULL-LOAD FUEL60.2 L/hReference @ 100% load

Reference configuration

A defined starting point, not a one-size-fits-all generator.

The figures below are based on a current 50 Hz Perkins-powered silent reference configuration from the manufacturing technical schedule. A final RHELGAN unit may change engine, alternator, frequency, voltage, enclosure, controller, tank, cooling and emissions configuration to suit the project country and duty.

Prime rating: 275 kVA / 220 kW
Standby rating: 300 kVA / 240 kW
Reference engine: Perkins 1506A-E88TAG4
Engine configuration: 6 cylinders · 8.8 L displacement
Lubricating oil capacity: 41 L
Fuel consumption: 60.2 L/h at 100% load · reference configuration
Open-set dimensions: 2.90 × 1.15 × 1.85 m
Open-set dry weight: 2,680 kg
Open-set tank: 560 L
Silent dimensions: 4.20 × 1.50 × 2.10 m
Silent dry weight: 3,790 kg
Reference silent tank: 770 L
Frequency: 50 Hz / 60 Hz · destination selected

Configuration capability

Build the power package around the site.

Standard systems first, with project-specific options added only where the operating environment or duty requires them.

50 Hz / 60 Hz configured to destination grid requirements

Single- and three-phase configurations where applicable

Open, silent, mobile and containerised formats

Automatic mains failure / ATS pathways

Deep Sea DSE7320 control available with remote-monitoring capability

Parallel and synchronised multi-generator systems available

Brushless AVR alternator with 100% copper windings; genuine Stamford or Leroy-Somer available

Standard fuel autonomy can be extended with larger or external tanks

High-ambient cooling options, including 50°C radiator configurations where technically suitable

Tropical, dusty and enhanced-corrosion packages selected to project exposure

Solar + battery generator-backup integration available as a project-engineered pathway

OEM RHELGAN branding available on production units and documentation

Typical applications

Designed for essential services and difficult destinations.

Larger community developments

Treatment + pumping systems

Remote field operations

Centralised essential-power loads

Electrical configuration

Frequency, voltage, phase, earthing, protection and connection arrangement are set from the destination grid and project brief.

Controls + ATS

Manual, AMF and ATS pathways are available, with DSE7320 control and remote-monitoring capability where selected.

Climate + enclosure

Silent, weatherproof, high-ambient, dusty-environment and enhanced-corrosion packages are selected against actual exposure.

Hybrid + parallel

Generator backup can be coordinated with solar PV, battery storage or synchronised multi-set systems through a project-specific control architecture.

Related power configurations

Choose the operating architecture around the generator.

These pathways define how the set is enclosed, moved, transferred, paralleled or integrated with a wider energy system.

Weatherproof acoustic enclosure

Silent & Weatherproof Power

Sound-attenuated generator packages for occupied sites, clinics, schools, community facilities, remote compounds and exposed project environments.

Explore pathway Trailer-mounted format

Mobile Power Systems

Trailer-mounted generator systems for field operations, construction support, recovery work, temporary infrastructure and projects that need power to move.

Explore pathway 20 / 30 / 40 ft / 40HQ pathways

Containerised & Parallel Power

Containerised generator plants and synchronised multi-set systems for larger infrastructure, redundancy, phased capacity and difficult-site deployment.

Explore pathway AMF / auto-start capability

ATS & Automatic Backup Power

Automatic mains-failure and transfer-control pathways for clinics, communications, water systems, community buildings and other essential services.

Explore pathway Remote auto start / stop

Solar + Battery Generator Support

Generator packages configured to operate as the backup and resilience layer within project-engineered solar PV and battery systems.

Explore pathway

Project specification control

RHELGAN POWER model names are planning classes. Published reference figures are not a substitute for final electrical-load analysis, motor-start review, local compliance, site engineering or the factory-approved project datasheet. Noise performance, emissions, ambient derating, altitude derating, corrosion package, warranty and certifications are confirmed for the exact quoted configuration.
